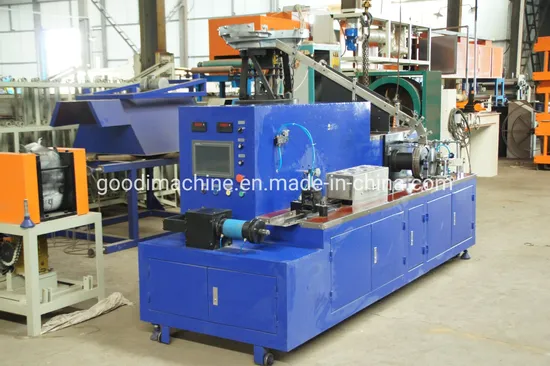

High Speed Automatic Wire Coil Nail Collator Coil Nail Making Machine Factory

Product Description

Machine specification:

Item	Unit	Data
Motor power	KW	2
Welding power	KW	6
Welding current	A	1000-2000
Welding source	V	DC290-330
Vibrating feeder	pcs/min	2000
Air pressure	kg/cm3	More than 4
cooling water	L/m	2
Nail diameter	mm	1.8-4.5
Nail length	mm	25-100
Welding speed	pcs/min	1250-2000
Machine weight	kg	1600

Main Features This roll nail machine is automatic welding equipment. Put nails in vibration plate. By vibrating disk will be scattered nail in sequence, through the orbit, welding roller and two plating copper wire welding into line row nail, then by automatic immersed anti-rust, drying and counting institutions automatic coil in coil pack, according to set each volume count automatic cut by operators will be finished with this band can be fixed after packing into boxes. The equipment adopts Japanese Mitsubishi programmable controller and digital graphic display touch of the company of high-tech products, such as lack of material in the system, the leakage nail, counting, cut material process for automatic detection, make whole system action accurate, reliable and stable quality.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines. 2.Q:Does the machine be able to cut different size of tapes? A:Yes absolutely , you can set any width by the PLC controler. 3.Q:Do you make machines according to specifications? A:Yes,we do design different machines for special purpose. 4.Q:Do you have the manual book ? A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate. 5.Q:How long does it usually take you to make the delivery. A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months. 6.Q:The voltage in our country is different from yours,does the machine can be changed? A:Yes, we can make the change for customers.

---
