Basic Info.
Automatic Grade
Semiautomatic
After-sales Service
ONLINE
sliding Table Size
3200X435mm
Cutting Height
80mm(100mm optional)
Main Saw Blade Diameter
300mm
Scoring Saw Blade Diameter
120mm
Main Saw Blade Speed
1000/5000rpm
Scoring Saw Blade Speed
8800rpm
Main Saw Spindle Diameter
30mm
Scoring Saw Spindle Diameter
20mm
Main Saw Blade tilting Angel
45°-90°
Packing Size
2200X1025X1000mm 3400X500X300mm 1500X200X200mm
Transport Package
Plywood Case
Specification
2200x1025x1000mm 3400x500x300mm
Production Capacity
100/Month
Product Description

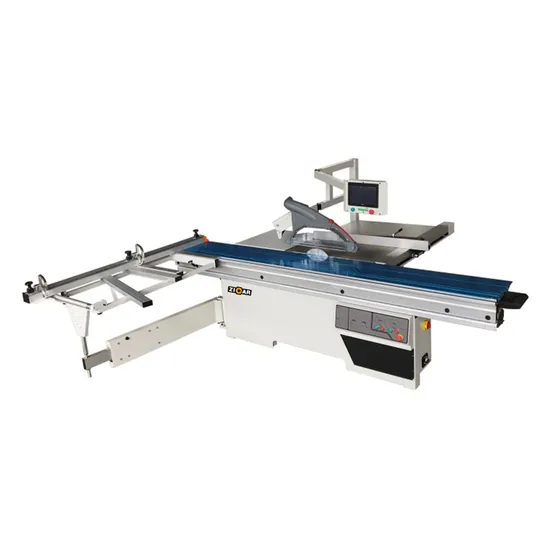

ZICAR Automatic Sliding table saw MJ6132YIIICNC
with motorized rise/fall and tilt adjustment of main saw blade.
Production parameters
| Model | MJ6132YIIICNC |
| Over all dimensions | 3200x3150x900mm |
| Sliding table size | 3200x435mm |
| Length of cut | 3100mm |
| Width of cut between sawblade and rip fence | 1300mm |
| Height of cut | 80mm(Ф300mm) |
| Saw blade diameter | 300mm |
| Scoring blade diameter | 120mm |
| Main saw blade speed | 3000/4000/5000rpm |
| Scoring saw blade speed | 8800rpm |
| Saw spindle diameter | 30mm |
| Scoring spindle diameter | 20mm |
| Main motor/Vice-motor | 5.5kw/1.1kw |
| Main saw blade titling angel | 0-45° |
| Net weight | 850kgs |
Detail views
Professional PLC Control Panel with automatic positioning, efficient Special sliding table structure with smoothly cutting process.
and accuratly cutting.
Whole structure processed by ourselves equipments, have strict CNC control induction with automatic measurement for cutting size. Demands for each spare parts to get a highest performance.
Overall views
