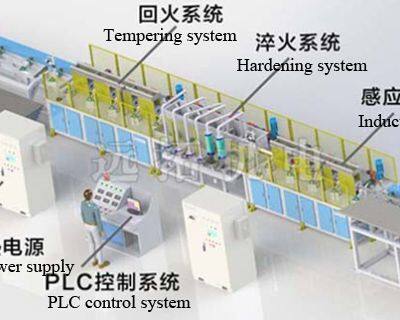

Threaded bar hardening and tempering
Forever can manufacture threaded bar hardening and tempering line as per user's specific requirement. In 2017, we produced one complete set of threeaded bar hardening and tempering line for the biggest steel Group in China.
● Threaded bar diameter: 16-40mm
● Threaded bar material: HRB300, HRB400, HRB500
● Threaded bar length: 2.5-12m
● Line speed: 4 piece / min at least
Forever threaded bar hardening and tempering line technical Parameters
1.All the circuit is digital, and all parameters can be set and modified in the touch screen or remote devices with high reliability, anti-interference ability, fast response and so on.
2.According to different diameter of threaded bars, Forever will design different induction heater. Wide range can meet wide range of threaded bars heat treatment to get higher heating efficiency. The length of induction heaters for tempering is longer than induction heater for quenching, which can make threaded bars get uniform and better induction heat treating effect. The internal structure will be uniform and stable ensure that the threaded bars performance to meet the requirements.
3.The pressure roller and the rollers between each induction heating coils are made of 304 non-magnetic stainless steel, inclined and water cooling, greatly extending the life of the roller.
4.Forever new design of adopting ceramic roller can reduce the threaded bars wear and no burning during threaded bars running on the roller table.
5.The threaded bar hardening and tempering line spray system is using multi-stage stainless steel water ring, and the pressure and flow of the water ring can be automatically adjusted to meet the requirements of different hardenability.
6. The threaded bars after hardening and tempering doesn't need straightening, no bending and no deformation. So the customer doesn't need to buy special straightening machine.
| Steel bar diameter | Automatic Control | Power Design |
| Ø10-Ø28 mm | IPC Control | KGPS350KW Quenching+KGPS160KW Tempering |
| Ø42-Ø48 mm(Anchor Bolt) | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø30-60 mm | IPC Control | IGBT250KW Quenching+IGBT160KW Tempering |
| Ø30-Ø60 mm | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø35-Ø60 mm | IPC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø30-Ø110 mm | IPC Control | KGPS400KW Quenching+KGPS400KW Tempering |
| Ø80-Ø110 mm | PLC Control | KGPS600KW Quenching+KGPS160KW Tempering |
| Pipe diameter | Automatic control | Power design |
| Ø95，Ø114 mm | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø73.2,Ø88.9,139.7 mm(Drill pipe) | IPC Control | KGPS500KW Quenching+KGPS100KW Tempering |
| Ø30-Ø60 mm | PLC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø35-Ø60 mm | IPC Control | KGPS250KW Quenching+KGPS160KW Tempering |
| Ø30-Ø110 mm | IPC Control | KGPS400KW Quenching+KGPS400KW Tempering |
| Ø80-Ø110 mm | PLC Control | KGPS600KW Quenching+KGPS160KW Tempering |
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
>>
