US$3,000.00-3,800.00
|
1 set
(MOQ)
|
Basic Info.
Controlling Mode
Mechanical
Clamp Type
Hydraulic Clamp
Transport Package
Plywood
Specification
dill diamter 50mm
Production Capacity
200PCS/Month
Product Description

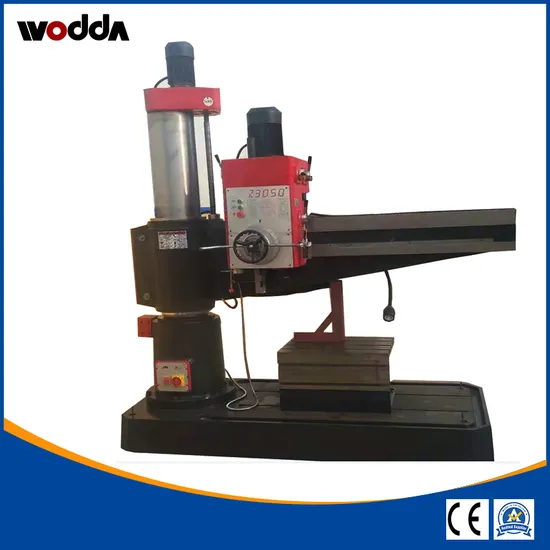

Factory Promotion Price Z3050X16 Radial Drilling Machine
Features
1. mechanical transmission
2. hydraulic clamping
3. Mechanical speed change
4. Automatic lift
5. Automatic feed
Specifications
Radial arm drilling machine Z3050x16 can be widely used in drilling, reaming, reaming, planing plane, tapping and other processing. High quality and high performance.
1. Small size, reduce the area occupied.
2. The control system is concentrated in the spindle box, variable speed flexible, convenient, feed safety insurance.
3. The basic large-scale use of high-quality materials molding casting, after aging treatment, with high-precision machine tool processing, with high accuracy.
4. The guide surface are hardened, the spindle using nitriding treatment, to extend the service life.
5. Gear with BH carburizing technology to extend the service life.
Model | Z3050X13/16 |
Max. Drilling capacity(mm) | 50 |
Distance from spindle nose to table surface (mm) | 320-1220 |
Distance between spindle axis and column surface (mm) | 350-1600 |
Spindle travel (mm) | 300 |
Spindle taper | MT5 |
Spindle speeds range (rpm) | 25-2000 |
Spindle speeds steps | 16 |
Spindle feed range (rpm) | 0.04-3.2 |
Spindle feed steps | 16 |
Rocker rotary angle | 360 |
Motor power (kw) | 4 |
Movements motor power (kw) | 1.5 |
G.W (Kg) | 3500 |
Overall dimension(mm) | 2500x1060x2800 |
Factory Promotion Price Z3050X16 Radial Drilling Machine
Factory Promotion Price Z3040X13 Radial Drilling Machine In Workshop:
Customer Visit
Factory Promotion Price Z3050X16 Radial Drilling Machine Plywood For Delivery:
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on professinal production radial drilling machines, hydraulic press machines and cnc lathe for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
Q:How about the service?
A: Shandong Woda Heavy Machinery Co.,Ltd is always provide good service, pre-sale--->in sale-->after sale.
Pre-sale: We have professional sales staff who are familiar with the products and are ready to solve problems for you.
In sale: We have a professional technical team with sales staff to provide you with solutions in real time.
After sale: At present, there is no after-sales problem. Once we encounter after-sales problems, we will promptly solve the problem for our customers. If necessary, we can send people to the past.
Q:Where is your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China.
Convenient transportation, welcome to your visit.
If have any questions pls feel free to contact me via mobile for convenient +8613346326288
>>
