Economic 2000bph Semi Automatic Pet Bottle Blower Price

Product Description

Economic 2000bph Semi Automatic Pet Bottle Blower Price

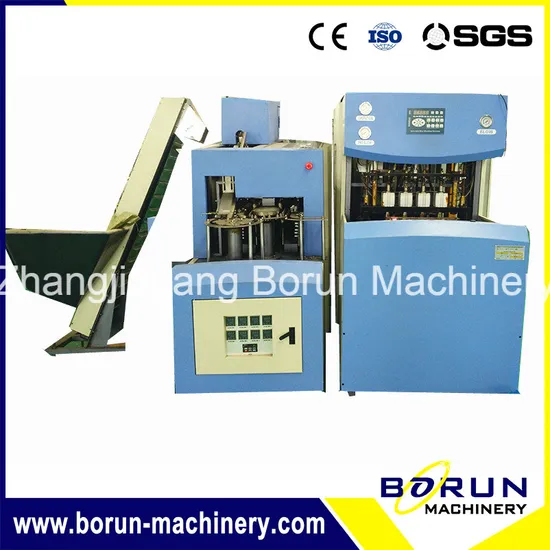

BM-SA4 semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml.It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

No.	Name	Type
1	semi-Automatic Blow Molding Machine	BM-SA4
	Rotary infrared pre-heater
	Auto-loader
	automatic feed
2	High pressure air compressor	2.4m³/30KG
3	Air tank	600L
4	Air dryer and filter system	4.0m³/30KG
5	Chiller	3HP
6	Mold	0.2-2L
7	Spare parts and tools

Technical Parameters:

Main machine (blower + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	2L
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	4
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	2600-2800(500ml bottle)
	Machine size(LxWxH)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.35*0.55*1.15
	Oven weight (KG)	300

Technology advantage:
1. Special design,high rigid compound die structure.
2. Wide adaptability, suitable for every type mould thickness.
3. Adjust convenience.
4. No mould rolling out.
5. More energy conservation,no need much air supply.
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action.
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%.
Accessories of bottle blowing machine:
1,High pressure air compressor
Air compressor system, tie-in use combination series high pressure gas system. Convenient maintenance, easy inspection and troubleshooting.
2, Air dryer
Main function is cool high pressure air to achieve a more ideal working temperature and increase the service life of pneumatic components and filter the impurities and oil in the air, improving product cleanliness.
3, Water Chiller
Mainly used for cooling the mould and guarantee the bottle part not damaged in the heating process, to improve the quality of finished products and production efficiency.

---
