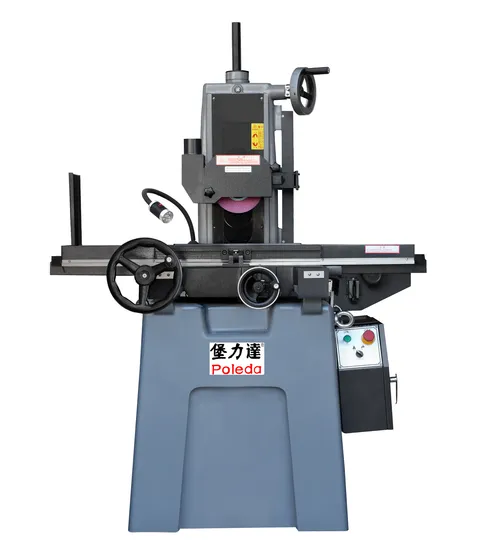

618h High Precision and High Quality Surface Grinding Machine, Dust Suction Device

Product Description

Product Description
Outstanding Features of the Surface Grinding Machine:
High Efficiency: The high-speed spindle of the surface grinder accelerates processing, significantly enhancing overall productivity in your workshop.
Extended Durability: Meticulously designed and manufactured mechanical parts promise a long-lasting operational life for the surface grinding machine.
Cost-Effective Maintenance: The surface grinding machine is engineered for simplicity in maintenance, ensuring low upkeep costs.
Effortless Operation: User-friendly interface and straightforward operation reduce the need for extensive operator training and associated costs.
Safe and Reliable: Engineered with high safety standards, this surface grinding machine ensures the utmost safety for operators.
Superior Structural Rigidity: Comprising a bed, column, workbench, grinding wheel, and grinding wheel frame, with a predominantly cast iron structure, this machine offers excellent shock resistance, wear resistance, and thermal stability, ensuring utmost rigidity and stability.
Versatile Applications: These powerful features make the surface grinding machine ideal for industrial production, capable of grinding a variety of surfaces and complex forms without the need for mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Crafted from high-grade cast iron, the main castings of our machine undergo meticulous annealing treatment to eradicate internal stresses. This process ensures exceptional precision, robust rigidity, and a prolonged machine lifespan. Slide Way: Our machine features a double V slide way, both left-right and front-back, enhanced with wear-resistant resin TI URCITE-B and precision shovel flower. This guarantees not only smooth and wear-resistant sliding but also makes it impeccably suitable for all forming and grinding tasks.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing. This design ensures low noise and no vibration, delivering substantial torque even at high speeds. It is perfectly suited for heavy cutting as well as a variety of forming grinding operations.
Automatic Lubrication System: Our machine features a state-of-the-art circulating automatic lubrication system. The lubricating oil commences its cycle as soon as the main spindle starts, providing forced lubrication to each screw and slide. This significantly reduces the wear degree of the slide. Additionally, an oil mirror installed above the column allows for real-time monitoring of the lubrication condition.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For some of our standard items that we keep in stock, the MOQ can be as low as 1 set.
2.How do you control the quality of the products?
A. Ensuring top-tier quality is our paramount concern. We implement rigorous quality control measures throughout our production process to consistently meet our high standards. Our guiding principle is to offer our customers superior quality, competitive pricing, and exceptional service.
3.What are the main products of your company?
A: We excel in manufacturing a diverse range of machinery, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We are flexible with various trade terms such as Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight) to suit your needs..What are your payment terms?
A: Our payment terms include T/T (Telegraphic Transfer), with a 30% initial payment upon order placement and the remaining 70% balance due before shipment.
6.What CNC systems do you use?
A: We offer an array of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN based on your preference and specific requirements.
7.How can I choose the most suitable machines?
A: To help you select the most appropriate machines, kindly provide us with the drawings and details of your products and their applications. Our experts will then recommend the optimal machines tailored to your needs.
8.What kind of packaging do you offer?
A. We primarily use durable plywood cases to ensure that all goods are delivered in perfect condition. Additionally, customized packaging options are available upon request.
9.Can your plant do OEM?
A: Absolutely, we offer both OEM and ODM services to cater to any specific client requirements.
10.How about the warranty?
A: Our products are backed by a comprehensive one-year warranty from the date of delivery. Beyond the warranty period, we also provide lifetime service support for our machines.

---
