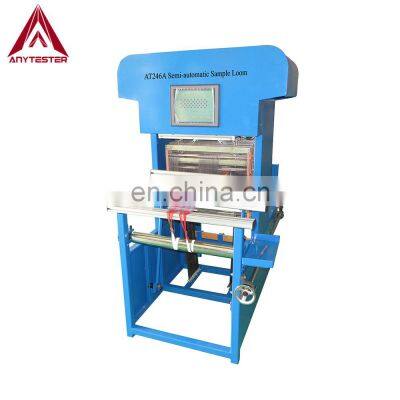

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification
Model
| AT246A
|
Shedding Method
| Dobby
|
Reed width
| 16inch or 20inch
|
No. of heald frame
| 16 (20 optional)
|
Let-off
| Manual
|
Shedding
| Pneumatic & PLC control
|
Color selection
| Manual
|
Beat-up
| Manual
|
Take-up
| Manual
|
Air pressure
| 0.45~0.8Mpa
|
Air consumption
| Max. 200L/min
|
Power
| A220V 50Hz, single-phase
|
Dimensions
| 1300×980×1510mm (L×W×H)
|
Weight
| Approx. 200kg
|
Details & Features
★PLC control touch screen with 2G memory capacity to store designed patterns; ★Designable and editable patterns and USB interface to share designed patters;
★Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;
★Outer surface treated by baking varnish, good brightness and nice appearance;
★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★With illuminating lamps;
★Stable operation, low noise and high reliability;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Dimensions
| 1300*980*1510mm (LWH)
|
Weight
| Approx. 200kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
