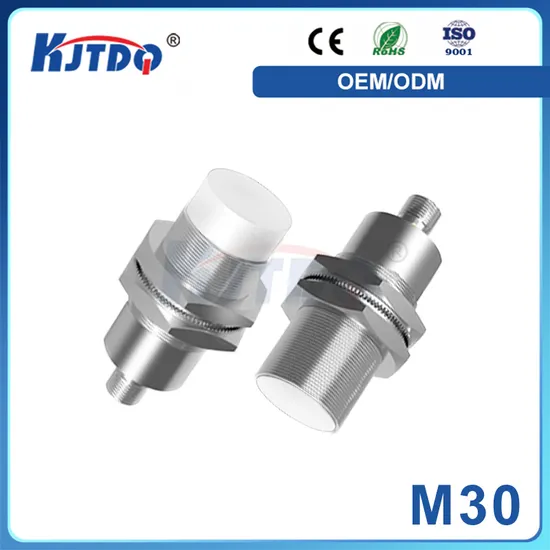

Kjt M30 NPN PNP 3 Wire Sn 10mm Shielded High Temperature Sensor Connector

Product Description

KJT Sensors - KJN-M30 Series
KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability. It is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries. The overall dimension, cable and detection distance of the product can be customized.
The proximity switch produced by Nanjing KJT Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron and P+F.
Main Features
Improved the noise resistance with dedicated IC
Built-in reverse polarity protection circuit(DC 3-wire type)
Built-in surge protection circuit
Built-in overcurrent protection circuit(DC type)
Long life cycle and high reliability, and simple operation
Protection structure IP67(IEC standard)
Replaceable for micro switches and limit switches

Technical parameter
Size	M30*55mm
Mounting	Flushed
Sensing Distance SN [mm]	10mm/20mm
Housing material	Chrome plated Brass
Indicator	With LED
Operating voltage	10-36VDC
Output	NC/NO
No Load Current	<10mA
Max.Load Current	200mA
Frequency	500Hz
Response Time	<3ms
Protection Degree	IP67
Operating Temperature	-25ºC-+150ºC
Overload Trip Point	200mA
Connection	PVC Cable 2M

Main products
proximity sensor,photoelectric sensor,color contrast sensor,light curtain,limit switch,ultrasonic sensor,laser sensor,pull cord,convayor protection device,speed sensor,high temperature sensor.
Our Services
1. Any enquiries will be answered within 24 hours
2. Professional manufacturers and strong R&D team support.
3.OEM/ODM is available, we can customize according to the requirements of customers.
4. The warranty is 18-month after purchased. We are a factory from China, please don't worry about the quality of our products and services.
6. If you have any questions about the product and logistics, please email us and we will reply as soon as possible.
7. After-sales service:
1) All products are subject to strict factory quality inspection before packaging.
2) All products have been packaged in our factory, and the second package is delivered through express service before shipment.
3) If there is any problem during operation or installation, please feel free to contact us and we will solve it with professional guidance
Thank you for your trust and cooperation!
FAQ
Q : What is the MOQ?A : 1pcs for our own available designsQ : Can I customize a special sensor?A : It can be customizedQ : Can I get a lower price if I order large quantities?A : Yes,it's negotiableQ : Can I get a sample?A : Sure.Q : When will you ship my order?A : 1 day shipping guarantee for stock item and 10-15 days for non-stock items.Q : How about the quality guarantee period ?A : Our warranty period is one year since from shipping date.Q : Can I add or delete items from my order if I change mind?A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.Q : How can you guarantee the production quality?A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 10+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.

---
