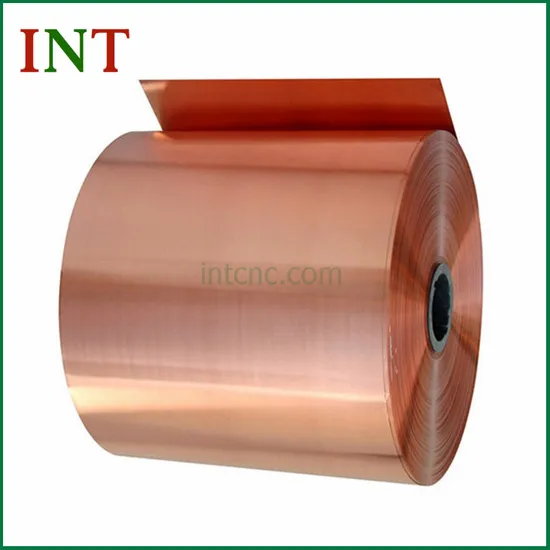

High Purity Soft Temper Pure Copper Foil

Product Description

High purity Soft temper pure copper foil
Copper factory, more than 12 years manufacture experience, attained ISO9001, work on OEM and ODM projects..
1. Introduction of the High purity Soft temper pure copper foil Copper foil is a thin, continuous metal foil deposited on the base layer of a circuit board, It is easy to adhere to the insulation layer, to accept the protective layer of printing, corrosion after the formation of circuit patterns. As an important material to made of CCL and printed circuit board (PCB).
PCB copper foil (purity of more than 99.7%, thickness 5um-105um) is one of the basic materials of the electronics industry
2. Grade and temper for High purity Soft temper pure copper foil Grade: T2 ,TU2, C102 , C1020, C1100 , Cu-ETP , CDA110, CDA102,
Temper: O(M), 1/4H(Y4), 1/2H(Y2), H(Y), HH(T) 3. Chemical composition of Pure Copper foil tape Cu+Ag:≥99.98
Sn :≤0.002
Zn:≤0.005
Pb:≤0.005
Ni:≤0.005
Fe:≤0.005
Sb :≤0.002
S :≤0.005
As :≤0.002
Bi:≤0.001
O:≤0.06
Impurities:≤0.1
4. Dimension and tolerance of High purity Soft temper pure copper foil Thickness : 9um -100um
Width : 10mm--1350mm
5. Mechanical properties for Rolled Copper Foil

Grade	Temper	Thickness /mm	Tensile strength	Elongation (%)	Vickers hardness HV
			(MPa)
T2 ,T3	M(soft)	≥0.2	≥195	≥30	≤70
TU1,TU2	Y4(1/4H)		215~275	≥25	60~90
TP1,TP2	Y2(1/2H)		245~345	≥8	80~110
	Y(H)		295~380	≥3	90~120
	T(HH)		≥350	-	≥110

6. Application of Pure Copper foil It is widely used in electromagnetic shielding and anti-static, industrial calculators, Communications equipment, QA equipment, lithium-ion batteries, civilian television sets, video recorders, CD players, copiers, telephone, air conditioning, automotive electronics, game consoles.
7. Manufacture plant of Rolled Copper Foil 8. Tests and inspection for Pure Copper foil Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
9. Mill certificates for Pure Copper foil
10. Packing and shipping for Pure Copper foil
Packing:
First wrapped by anti-rust paper, second wrapped by plastic film, then packed by wooden box or wooden pallet ..
Shipping:
We will choose the best way according to customer's requests.
1. By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT, EMS), to the indicated address.
2. By Sea, to the indicated sea port.
11. Questions and Answers
a1. Do you have ISO certificate?
Yes, we obtained ISO9001
a2. How long is your delivery time for copper foil?
If the master coil is available, 3-7 days do slitting will be ready , if not, will need 20-25 days for new production.
a3. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.
a4. How do you control quality?
We produce strictly according to customer's drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.
a5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.

---
