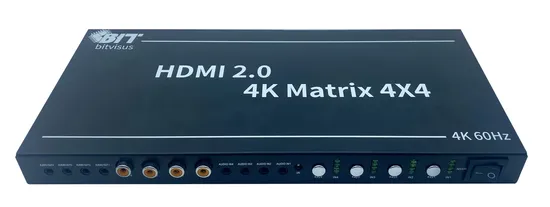

New Product RS232 LED Support IR Control 4 Channel Matrix 4K 4X4 HDMI Matrix Switcher

Product Description

Product Description

Product Name	BIT-Ma-GS-0404-2.0 /Ultra HD Matrix Switcher
Resolution	Up to 3840x2160@60Hz
Supporting Agreement	HDMI 2.0 ,HDCP 2.2
Way To Control	Panel buttton control , infrared remote control
Audio output	HDMI Output Comes With Audio,3.5mm Headphone holder,PDIF Audio

Product performance description:
BIT_Ma_GS_2.0_0404 is a 4 in 4 out all-digital ultra-clear matrix switcher,Freely switch four HDMI signals,the highest supported resolution can reach 3840x2160@60, 3D video. Support HDMI 2.0, HDCP 2.2, and audio output, which can bring users a lossless and true ultra-clear and fully digital experience.
The instruction of remote control button:
Enter key: In1+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 1.
In2+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 2.
In3+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 3.
In4+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 4.
All key:
In1+All: All 4 output ports are switched to the signal of input port 1.
In2+All: All 4 output ports are switched to the signal of input port 2.
In3+All: All 4 output ports are switched to the signal of input port 3.
In4+All: All 4 output ports are switched to the signal of input port 4.
specification

Input the highest supported resolution	3840*2160@60Hz
Maximum supported bandwidth	18Gbps
HDMI port	HDMI 2.0 x4
Single port support output maximum resolution	3840*2160@60Hz
HDMI output port	HDMI 2.0 x4
Audio output	HDMI, 3.5mm Headphone Holder,PDIF Audio
Control method	Panel button control, infrared remote control
Default resolution	1920*1080@60Hz
Work temperature	0ºC-50ºC
Power consumption	12W
Power supply	12V@2A AC-DC power supply
Size Length: Width: Height	270mm*122.5mm*20.5mm
Accessories	1 12V@2A AC-DC power supply 1 remote control
Warranty	1 Year

Packaging & Shipping
Paking:
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
Delivery:
1.EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
Company profile:
FAQ
Q:Are you factory or trading company?
A:We are a factory, located in Shenzhen China.Q:What are your main products? A:HDMI matrix switcher, HDMI video wall controller, video wall processor, spliter, extender.Q:Can I get some samples? A:We are honored to offer you samples , but sample charge is required.Q:Can you make the processor as our requirement? A:No problem, we have professional engineer teams to make customized processor.Q:May I inspect before delivery ? A: Yes, welcome to inspect before

---
