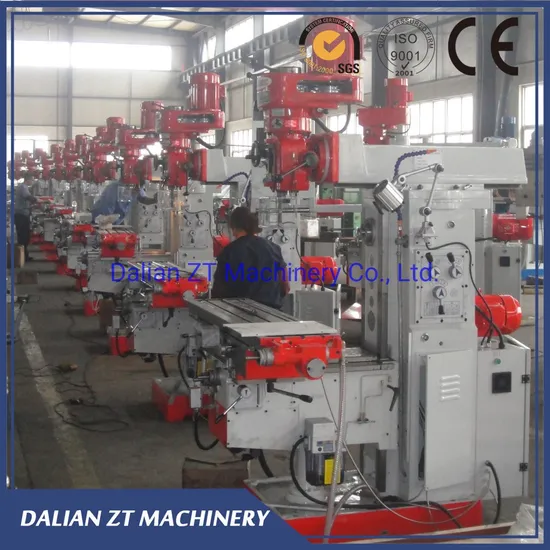

XQ6332 Conventional Universal Vertical Turret Ram Milling Machine

Product Description

Features:
1. Finely graduated feeds in all axis, driven by servomotor 2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process

Specifications	Unit	XQ6332		XQ6332A		XQ6332B		XQ6332C
Table size	mm	1270X320		1370X320		1270*320		1370*320
Table travel (X/Y/Z)	mm	720/300/400		820/300/400		900/380/400		1000/380/400
Rapid speed of table (X/Y/Z)	mm/min	1335/1335/1000
Spindle taper		5HP: ISO40
		Horizontal : IS040
Table feed (X/Y/Z)	mm/min	XY:30-830 Z:23-625
Distance between horizontal nose and table surface	mm	75-475
Distance between spindle axis and ram surface	mm	200
Spindle speed range	r/min	43-3225(variable)
		65-4660 (16steps)
		12 steps 35-1500(Horizontal)
T-slots(No./width/pitch)	mm	3/14/80
Arm travel	mm	450
Main motor power	---	Vertical : 5HP
		Horizontal : 3Kw
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720×1680×2350	1820×1680×2350		1720×1680×2350		1820×1680×2350
Net weight	kg	1680	1730		1730		1780

Standard Accessories

S.NO	NAME	SPEC	Q'TY
1	Main machine		1
2	Hex wrench	5	1
3	Hex wrench	6	1
4	Hex wrench	10	1
5	Fork wrench	17*19	1
6	Fork wrench	22*24	1
7	Fork wrench	32*36	1
8	Elevating crank		1
10	Milling arbor	7:24 ISO40 Ø27
11	Draw bar		1
12	nut	M16	1
13	washer	16	2
14	Operation manual		1

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
