High Speed Omega Purlin Solar Roll Forming Machine Peb Size Adjustable Roofing Panel Cold Roll Forming Machine Steel Tile Making Machine

Product Description

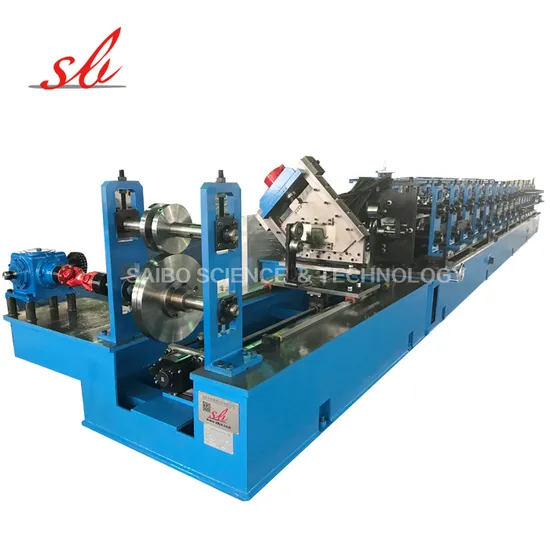

High Speed Omega Purlin Roll Forming Machine
Product Description
1. Specification of the material

1	suitable material	galvanized (345MPa)/galvalume (550MPa)
2	width of the raw material	base on profile
3	thickness	0.9-1.5mm

2. Machine detailed parameters:

1	machine structure	iron cast by wire-electrode cutting
	change size	flange and width is adjustable
2	total power	about 45kw
3	roller stations	about 14 stations + one station for rectify (according the final design)
4	productivity	about 40-50m/min not include punching
5	drive system	by 1.0 inch double chain
6	diameter of shaft	¢70mm solid shaft
7	voltage	415V 50Hz 3phases (customized)
8	container need	1X40gp +1X20gp container
10	space request l X w X h	line: about 21mx2mx1.8m
11	motor brand	Siemens
12	servo motor	yaswaka

3. Specification of Components

No		Technical Specification & Remark
1	5T hydraulic decoiler	Steel coil width: 550 mm; Internal diameter of coil: variable, from380 mm to 520 mm Coil weight: 5000 Kg; Main motor power: 7.5KW Hydraulic power: 4kw Speed controlled by frequency converter
2	Feeding of forming	Feeding is adjustable by hand wheel Guide sheet to forming section
3	Main Roll Forming Machine	Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree Change size by PLC and need change few rollers
4	Machine structure:	Main frame by 350H beam welding By chain
5	Hydraulic cutting system	Adopt the hydraulic cutting Cutting after forming: Cut the sheet after roll forming to required length Material of blade:Cr12, 58-62 HRC hardness Cutting power by hydraulic,11KW Servo power: 4KW Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.5mm for each piece end product
6	Hydraulic System	Hydraulic power: 11kw Working pressure: 25Mpa Solenoid valve: 1 group Hydraulic oil: 46# hydraulic oilQuantity :1
6	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Voltage, Frequency, Phase: 415 V, 50 Hz, 3Phase Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achievedLength inaccuracy can be amended easily. Control panel: Button-type switch and touch screenUnit of length: millimeter
7	Stacker	Power: 3kw Air compressor: provide by buyer Speed suitable for 40-50m/min Length in 6m

4.Machine photos for reference
View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html
Warranty
5. warranty
warranty: 1 year warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
After Sales Service
6.Servies
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Packaging & Shipping
7.Packing & Delivery

Packing	1.Machine is nude loaded in the container .
	2.The electric controlling box is packed by protect film .
	3. All the spare parts are put in the wooden box .
Delivery	1. Sea shipping .
	2. Air shipping for sampling .
	3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry .

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html Company Profile
About Saibo
40 years history in Metal roll forming machine industry30 years experienced engineersFocus on machine quality and automatic with reasonable priceExperienced technician can be sent to install machines abroad200+ sets of machines exported each year
24 hours on line service
Zhangjiagang City Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of different kind purlin/channel which make from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in zhangjiagang city,Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in 30 years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and regular customers . All of our technology team and marketing person all more than 10 years working.In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
View more products,click here..
https://saiborollforming.en.made-in-china.com/product-list-1.html
FAQ
FAQ
Q1 : How to find Saibo? 1. Search Made-in-China find Saibo, suppliers and manufactrue and not traders
2. Visit exhibition in different countries
3. Send Saibo an request and tell your basic inquiry
4. Saibo sales manager will reply you in short time and add instant chatting tool
Q2 : You are welcome to our factory at any time .
1. If we can fullfill your request and you interested in our products, you may pay a visit to Saibo site
2. The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q3 : How to guarantee your funds to be safe and delivery to be on time ?
1. By letter of credit, you can lock the delivery time easily.
2. After the factory visit, You can ensure the facticity of our bank account.
Q4 : See Saibo how to ensure the quality !
1. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2. Each component before assembly needs strictly control by inspecting personnel.
3. Each assembly is in charged by a master who has working experience for more than 5 years
4. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
Q5 : The after-sale service of Saibo !
1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
