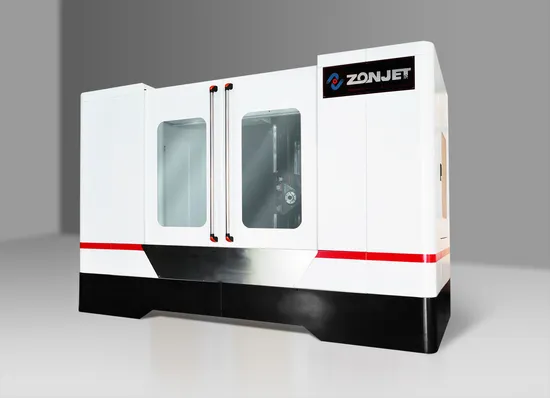

Drill Depth 1500mm with CE CNC Deep Hole Drilling Machine for Mould (ZJA15--1612)

Product Description

Technical Parameters of Machine Tool
No.	Items	Contents
1	Diameter range	φ3~φ32mm
2	Maximum depth	1500mm
3	Measurement of Operation Platform	1000×1700mm
4	Load of Operation Platform	5
5	Weight of Machine Tool	13
6	Measurement of Machine Tool	5500×4000×2800mm
7	Route of Three Axis	X:1600mm Operation Platform	Y:1200mm Column	Z:1500mm Entrance
8	() Speed Adjustment Range of Main Axis	0~4500r/min
9	() Feed Speed Range of Tools	0~200mm/min (Non-restrictive data)
10	Rapid Speed	5000mm/min
11	Power of Main Axis Motor	7.5KW
12	Power of Three Axis Servo Motor	X:23N.m	Y:23N.m	Z:10N.m
13	Power of Oil Pump	High-pressure Pump 3.7KW	Low-pressure Pump 7.5KW
14	Power of Chip Conveyor	0.2KW
15	Power of Oil Temperature Control System	3P
16	Total Power of Machine Tool	30KW
17	Pressure of Oil Cutting	10Mpa
18	Capacity of Oil Tank	600L
19	Quantity of Main Axis	1
20	Precision of Hole	IT8~IT11
21	Harshness of Hole Surface	Ra ≤3.2μm
22	Tolerance between the Hole Axis and Standard	0.5/1000(S45#,10mm)
23	Precision of Filter	20μm
24	T Operation Platform T Groove	18mm
25	Quantity of Shockproof Support	3pcs

The base of machine tool is made of resin sand cast, which is twice qualitative treated. There are three main parts: base, column and entering sliding table. Imported ball screw and guide rail are installed in every part, and it runs by the high-precision Servo Motor.
The base includes operating platform, Servo Motor, lubricating system, protecting cover, etc. The operating platform moves along the direction of X axis horizontally.
The column includes Servo Motor, counterweighing, etc. The entering sliding table moves up and down along the direction of Y axis.
The sliding table includes main axis and its motor gears, Servo Motor, anti-hunting support for gun drill and its automatic regulating device, gun drill guide and chip conveyor, stabilizer of hydraulic system, etc. The gun drill moves along the direction of Z axis horizontally.
The main axis part consists an axis kit. The main axis is driven by the gear belt wheels and make rotational motion. There is an imported high-speed and high-pressure rotary connector behind the main axis, in order to ensure no leakage of cutting oil when the main axis runs in high speed. There is also hydraulic overload protecting function, and the components can be well protected in case of any improper operation.
It is a special deep-hole drilling operating system, which is powerful, simple operating, stable and durable. Main advantages:

Multi - segments processing automatically: It will adjust the feed rate automatically according to the processing schedule.

Logical control processing: The processing situation is monitored and the processing specification will be adjusted automatically if any unusual.

The highly sensitive monitoring equipment will sound a alarm if any unusual errors and stop processing, which is safe and found intuitively.

Multiple operation. There are optional modes: man-machine dialogue mode, machine programming mode and remote transmission mode.
