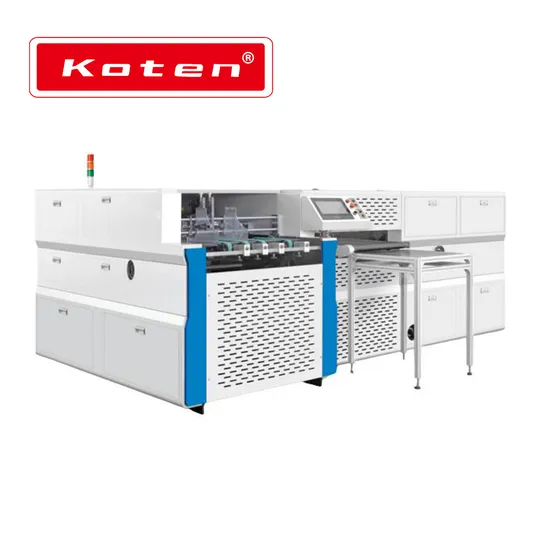

Factory Price PLC System Automatic V Groove Cutting Machine

Product Description

The slotting machine is a kind of mechanical equipment used for slotting ash plate. It has the characteristics of simple, practical and high efficiency. The structure of the product is mainly composed of waste removal conveyor belt, slotting knife, positioning device and control system. The slotting knife is installed in a fixed position for slotting, so that the slotting knife can be accurately slotted on the ash plate, and the control system controls the speed. The machine has the function of automatic waste cleaning, and the waste generated by the slotting will be automatically removed by the conveyor belt. The advantage of this product is that it can improve the accuracy and efficiency of gray plate slotting, avoid the error and labor intensity of manual slotting, and at the same time, the product is simple to operate and easy to maintain, which can save labor costs for enterprises.

Model	HR-1000
Feed Size(L)	130-600MM
Feed Size(W)	130-650MM
Slot Angle	80-140
Number Of First Grooves	4
Number Of Second Grooves	4
Weight	3500KG
Packed Weight	3850KG
Precision	±0.20MM
Highest Precision	±0.10MM
Board Thickness	1.0mm-4.0MM
Power	6.0KW
Speed	50-80 meter/min(300*300MM)130pieces/min
Highest Speed	50-100 meter/min(300*300MM)150pieces/min
Machine Dimension	4000*2300*1520MM
Packed Machine Dimension	4150*2450*1680MM

---
