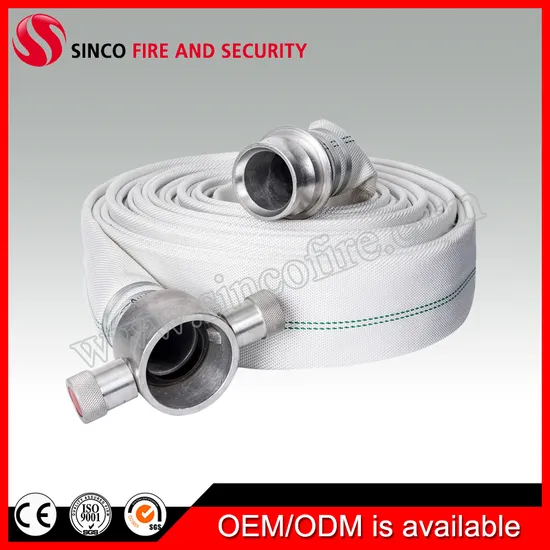

6~25 Bar Wp PVC/ Rubber/ PU Lining Canvas Fire Hose

Product Description

6~25 Bar Wp PVC/ Rubber/ PU Lining Canvas Fire Hose Product Description A fire hose is a high-pressure hose used to carry water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it is attached either to a fire engine or a fire hydrant. Indoors, it can be permanently attached to a building's standpipe or plumbing system.
InnerThe fire hose lining could be PVC,Rubber,EPDM/PU/Synthetic Rubber.The lining has even thickness, smooth and flat surface, no wrinkle and other defects.Colors to be select: white, blue, red, black and other colors customized.Advantages: light weight, wearing resistance, corrosion resistance, small flow resistance, durability, and easy winding.JacketFire hose jacket weaving: single jacket, warp: high strength polyester staple, weft: low elongation polyester filament, plain or twill weaving. The Jacket weaving evenly, tidy surface and no jump double-warp, broken double-warp, weft jump and scratch.Working pressure: 6 bar, 8 bar,10 bar,13 bar,16 bar,18 bar,20 bar,25barHose size:1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch,5 inch,6 inch,8 inch.(working pressure and size can be customized)Jacket color: white, red, yellow, blue, and other colors customized; the dyeing of strip can increase wearing resistance.Jacket length: normal length is 15 m, 20 m, 25 m, 30 m; or it can be customized.
Product Parameters

Specification
Lining Material	PVC,Rubber,EPDM/PU/Synthetic Rubber
Jacket Material	High strength polyester staple,polyester filament
Jacket Numbers	Single Jacket/Double Jacket
Jacket Color	white, red, yellow, blue, and other colors customized
Working Pressure	6bar, 8bar,10bar,13bar,16bar,18bar,20bar,25bar
Hose size	1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch,5 inch,6 inch,8 inch,10 inch,12 inch
Hose Length	15m, 20m, 25m, 30m, 50m, 100m
Hose Coupling	Storz,Gost,John Morris,Machino,etc
Use	Fire Fighting,Irrigation,Agricultural
Certificate & Approval	CCCF

Model Number	Size (Inch)	Size (mm)	Working Pressure (Bar/PSI)	Bursting Pressure (Bar/PSI)	Length (Meters)
SP25	1"	25 mm	8/10/13/16/20 Bar 125/150/190/235/300 PSI	24/30/39/48/60 Bar 375/450/570/705/900 PSI	15-30M
SP40	1-1/2"	40mm	8/10/13/16/20 Bar 125/150/190/235/300 PSI	24/30/39/48/60 Bar 375/450/570/705/900 PSI	15-30M
SP45	1-3/4"	45mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP50	2"	50mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP65	2-1/2"	65mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP80	3"	80mm	8/10/13 Bar 125/150/190 PSI	24/30/39 Bar 375/450/570 PSI	15-30M
SP100	4"	100mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP125	5"	125 mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP150	6"	150 mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP200	8"	200mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP250	10"	250mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP300	12"	300mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP350	14"	350mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP400	16"	400mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M

Detailed Photos
Company Profile We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.
Certifications
Other Firefighting Products
FAQ 1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2.Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.

---
