Pet Bottle PP PE Film Waste Plastic Recycling Machine

Product Description

Product Description
Pet Bottle PP PE Film Waste Plastic Recycling Machine

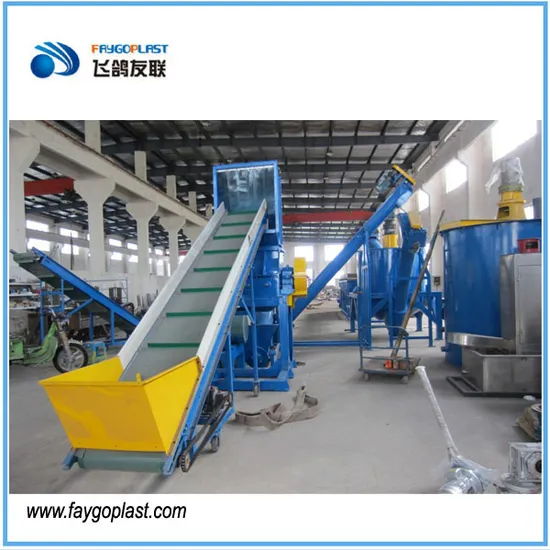

Waste PP PE Film crushing, washing and drying line
This line is mainly used to clean the waste plastics, such as PE HDPE LDPE LLDPE PP BOPP Film, bags, PET bottles, Jerry cans, bucket, basket etc. The waste dirty material will go through crushing, washing, drying, and collecting process, and turn to be clean flakes for pelletizing.
Now our company produces both the crushing washing recycling machine and the pelletizing recycling machine, we can provide Washing Recycling line capacity from 300-2000kg/h, and Pelletizing line capacity from 100-1500kg/h.
This line mainly include crusher or shredder machine, friction washer machine, float washing tank, High speed friction washer machine, dewatering machine, hot air dryer system, storage silo etc.
Product Parameters

Model	FGR300	FGR500	FGR800	Remark
Belt conveyer	1.1kw	1.1kw	1.5kw	Washing and Squeeizing part
crusher	PC800,37kw	PC1000,45kw	PC1200,55kw
Screw loader	3kw	3kw	4kw
Friction washer	7.5kw	7.5kw	11kw
Float washer	2.2kw	3kw	4kw
Squeeaing Pelletizer	55kw	75kw	110kw
Air cooling system	4kw	5.5kw	7.5kw
Conveyer	1.1kw	1.1kw	1.5kw	Pelletizing Line
Single screw extruder	90kw	132kw	160kw
Screen changer and die	1.5kw	2.2kw	3kw
pelletizing system	1.1kw	1.5kw	2.2kw

Work Processing
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing

1.Plastic Crusher MachineFunction: Crushing the material into scrapsWith water inlet do wet crushing;Chamber opened by screw motor; Specially designed wet Crusher Machine can easily get high output and with water doing wet grinding can extension the blades use life, reduce the dust generation.Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.2.High speed friction washerFunction: washing the material with high speed frictionWith spraying water from top to wash material;High speed rotation to ;wash material with friction; NSK bearing to to ensure stable running3.Float Washing TankFunction: Wash the material with clean water It has blending wheel to move the floating material forward and spraying water pipe to help washing the material; Equipped dirt lift screw conveyor to remove dirt during working4.Centrifuge DryerFunction: Dry the material will high speed centrifuge.With high speed rotation, it can remove 90% percentage water among soft material; Top grade bearing to ensure stable running and long working lift. With self clean system5.Squeezing dryerFunction: Dry the PP/PE film bag material with squeezingWith pushing force, it can remove 95% percentage water among soft material like wet PP/PE film, bags; With heating system insde screw to half melt the material to dry the material completely. It is idea material for washed PP/PE film, bags, drip tape etc.
Pelletizing line: Waste Plastic → Finall Pellets
Welcome to visit us at any time and please feel free to contact us for more details.
Company Profile

FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.Q: All of your products are made by your self or compacted via purchasing the others?A: We have independent technical team who focus on making machines, all the products are made by our technical team.Q: What is the ability of your factory?A: About 100 lines per month.Q: Do you have any other services about your products?A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.Q: How do you make the quotation for clients? A: The price depends on quality and performance but the clients should be satisfied first.

---
