Automatic Door Panel Cutting Machine for Door 4 Sides Cutting

Product Description

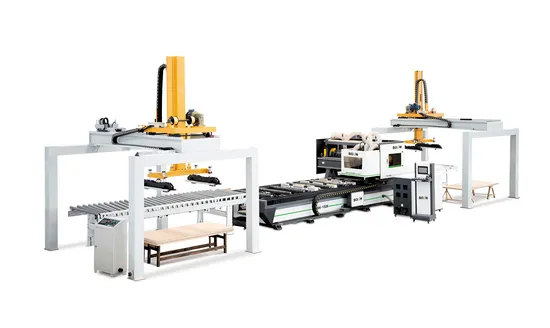

Automatic cnc door panel cutting machine for door 4 sides cutting
Save labor cost, improve working efficiency and door cutting precision, this automatic door panel cutting machine is your best choice.
1).Main Configuration
1.Taiwan control system
2.Taiwan high precision guide rail and grinding screw rack
3.Japan servo drive system and planetary reducer
4.Imported components
2).Feature
1.The body through FEA finite element analysis and annealing treat, body stability and not deformation.
2.Floating adsorption table,the whole plate adsorption or point to point adsorption.Just input the size to cut.Quickly loading and unloading,shorten the auxiliary time.Improve production efficiency and reduce the intensity of labor.
3).Applicable Industries
It is widely used in plywood, wooded door, panel furniture, laminated timber puzzle, Block-board, MDF, chipboard, glass magnesium board, calcium silicate board, gypsum fiberboard, Carpentry board and other manufacturers for customized size edge cutting process.
4). Technical Parameter

Travel size	1300*3000*150mm	Speed of main saw	4500-4600rpm
Work table size	1300*3000mm	Speed of scoring saw	7000-9000 rpm
Max cutting length	3000mm	Max working speed	25m/min
Max cutting width	1300mm	Diameter of scoring saw blade	120mm
Max cutting thickness	65mm	Diameter of main saw blade	300mm
Table structure	Moveable gantry	Driving system	Servo motor
Drive type	Rack and pinion	Control system	Taiwan Fatek
Note:Slotted at the bottom for one side(Vertical positioning)

5).Machine details
Contact us now for more machine details and video.

---
