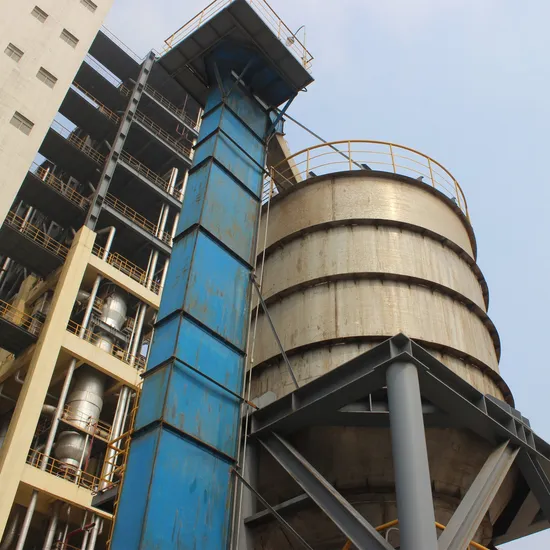

Galvanized Steel Belt Type Fertilizer Bucket Elevator Conveyor

Product Description

About Us Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.

Product Description Application and Working Principle
TDG/THG Efficient Bucket Elevator with SH Type Hopper is used for lifting dry, bulk, fluidity powder, granular and block material, where as hopper is often used for lifting slight moist, easy caking, bad fluidity powder material.
THG Type Bucket Elevator is using high strength ring chain as it traction component, the maximum material temperature can be reach to 250 ° C. TDG type bucket elevator's traction component is EP belt and steel belt. Common belt used in bucket elevator is able to lifting material with temperature less than 80 °C while the material temperature by heat-resistant belt should be less than 120 °C.

Performance and Features

1)Wide range of bulk materials can be handled, including powder, granular and block materials.
2)Large capacities for conveying in a compact space.
3)Completely enclosed for dust-tight operation, improve the working conditions and prevent the environmental from being polluted.
4)Reliable electrical device and mechanical safety device.
5)Flexible installation and maintenance.
6)Construction available in carbon steel, stainless steel.
7)Engineered and manufactured to meet specific customer requirements.
Product Parameters
Efficient Bucket Elevator -- Belt Type

Model	TDG 160	TDG 200	TDG 250	TDG 315	TDG 400	TDG 500	TDG 800	TDG 1000	TDG 1250	THG 160	THG 200	THG 250	THG 315	TDG 630
Capacity (m3 /h)	32	45	72	101	158	220	492	788	1220	30	50	70	100	348
Bucket Volume (L)	2.6	4.1	6.5	10	16	25	64	102	161	2.6	4.1	6.5	10	40
Bucket Pitch (mm)	260	300	325	360	420	460	580	650	720	270	270	336	378	520
The Weight of Every Meter Belt With Bucket (kg/m)	22	21.5	33	33.2	42.2	62.3	106	145	155.5	31	31.85	33.4	43.25	78.53
Bucket Speed (m/s)	1.2	1.2	1.34	1.34	1.5	1.5	1.65	1.86	1.86	0.93	0.93	1.04	1.04	1.68
Lifting Height (m)	80	80	80	80	80	80	80	80	80	60	60	60	60	80

Efficient Bucket Elevator -- Ring Chain Type

Model	THG 400	THG 500	THG 630	THG 800	THG 1000	THG 1250
Capacity(m3 /h)	160	210	350	475	715	1120
Bucket Volume (L)	16	25	40	64	102	161
Bucket Pitch (mm)	420	480	546	630	756	756
The Weight of Every Meter Belt With Bucket (kg/m)	60.9	79.6	88.66	107	150	187.6
Bucket Speed (m/s)	1.17	1.17	1.32	1.31	1.47	1.47
Lifting Height (m)	60	60	60	55	55	40

Model Selection Guidelines

Material property			Technical requirements
Material name			Capacity		TPH
Density		T/m3	Height between the inlet and outlet
Moisture content		%	Chain type or belt type
Temperature		ºC	Equipment material
Particle size distribution percentage		%	Voltage , frequency		V, Hz
Chemical property			Motor brand
Pictures is better			Installation space limit		mm
Technology : The machines before and after the vibrating screen
