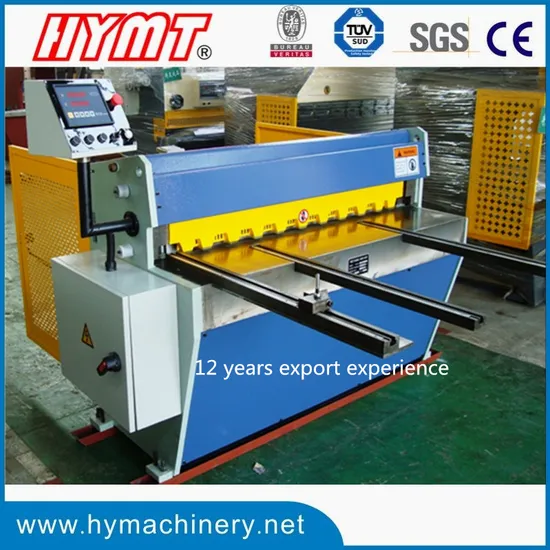

QH11D-2.5X2500 high speed steel plate shearing cutting Machine

Product Description

Main functions:
Different from the traditional driving method of mechanical shear, it is one of the most advanced miniature mechanical shear, and enjoys good reputation both at home and abroad. The low cutting angle and inclined shear direction reductes bowing and twist to a minimum. Blade clearance is easily set by a manually operated quick set device. It is an ideal truecut machining equipment of metal sheet and nonferrous metal sheet.
Main specifications:

Model	Max thickness(mm)	Max width(mm)	Agnle(degree)	Travel number of top post (no/min)	Motor (kw)
QH11D-2.5x2000	2.5	2000	1	47	5.5
QH11D-3.5x1250	3.5	1250	1.5	47	5.5
QH11D-2.5x1300	2.5	1300	1.5	47	5.5
QH11D-3.0x1500	3.0	1500	1.5	47	5.5
QH11D-3.2x2500	3.2	2500	1.5	47	7.5
QH11D-3.2x2000	3.2	2000	1.5	47	7.5
QH11D-3.2x2200	3.2	2200	1.5	47	7.5
QH11D-2.5x3050	2.5	3050	1.5	47	11

Our Services 1.Standardization of Service "212" 2: response in 2 hours 1: provide solution in 1 day 2: solve complaint in 2 days 2.Installation Service Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines. 3.Training Service Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines. 4.Quality Guarantee We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
