2020 Auto Cold Saw Blade Sharpening Machine

Product Description

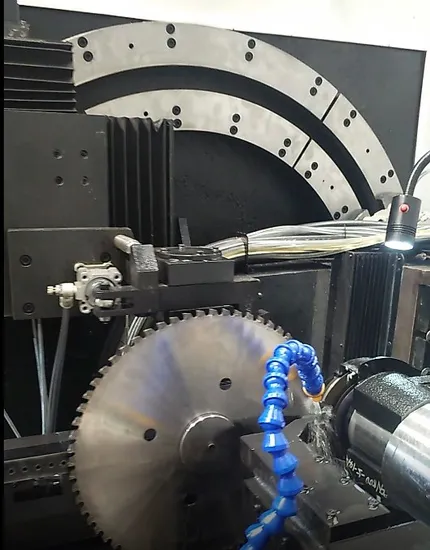

CMT 500 CNC Turnning Side Sharpening Machine with Robot High-level productivity & precision grinding machine for carbide tools. Advantages of saw blade sharpener • More precision- grinding precision: <0.015mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement • More Function- grinding SIDE of saw blade CNC Control- High Precision is flexible to control ultra-precision grinding as requirement. 3-D Graphics Grinding Machine Technical Premeter

Saw Diameter	250~500mm
Side Relief	0°~ 4°
Side Angle	0°
Bore Diameter	15.88~120mm
Flange Diameter	180-460mm
Wheel Size	150mm*32mm
Wheel Speed	2500~3500RPM
Saw Speed	10~50RPM
Power	5.1KW
Dimension	1600*1500*1850mm
Weight	1980kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?

---
