Automatic High Speed High/Low Carbon Steel Copper Straight Line Wire Drawing Machine Price for Nail Making/Drawings Wire Machine

Product Description

Company Profile

All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality. The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial developmentand upgrading, and build the world's leading steel processing equipment.
Product Description
Automatic high speed high/low carbon steel copper straight line wire drawing machine price for nail making/drawings wire machine
(1)⇒Introduction:
Straight lineWire drawing machine can draw the low/high carbon steel wire from big diameter to small diameter, finally used to make different kinds of wire mesh.
If you can't find the suitable wire diameter in your local market, you can use this machine to make different diameters of black wire or GI wire according to different applications.
Also our wire drawing machine can produce round wire to ribbed wire. (2)⇒Production Process Low carbon steel wire rod→ High pay-off frame→ Shelling and Rust removal →LZ6/560 Straight Line Wire Drawing Machine→Tension
device → wire take-up machine

Frame:
It is the foundation of the whole drawing machine units. It is welded by buttress plate, bent steel, section steel. All materials
are designed safety enough to enhance the rigidity.

Drive:
Power by the AC frequency motor through high-frequency joint narrow V-belts, spread by the hardened reducer to capstan.
Capstan cooling:
The main shaft of capstan is fixedly install an upper spiral water jacket, below is a water wheel. Capstan is mounted on the
spindle, the lower part of water jacket and capstan inner wall form 10-15 mm water storage. Inside of the capstan use narrow slit
water cooling,forming good circulation water cooling.
Drawing die box:
Die box is welded structure, into two cavity. The guide roller is mounted into the side to ensure that steel wire can straight
into the drawing die, die holder should be adjusted to wire tangent to enter the drawing rolls tuning roller installed at the
entry end of the mold base tuning roll by a small cylinder put power, tuning the swing of the roller, so that the corresponding
sensor output signal to fine-tune the speed of change.
Our Advantages
Automatic high speed high/low carbon steel copper straight line wire drawing machine price for nail making/drawings wire machine
(1)It is very easy to operate; (2)Transmission system: direct drive by servo motor;
(3)Speed regulation mode: AC servo drive;
(4)Control method: Common DC bus control system;
(5)Take-up method: I-shaped take-up machine, elephant trunk off-line machine, upside-down take-up machine, can realize take-up without stopping;
(6)Working life of capstan is more than 22000 hours.
(7)First block will be done with non stop design,Except first block each block could be skipped in case of need.
Product Parameters

Items	Unit	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	MM	800	700	560	400
Draw passage	TIME	10	9	10	10
Incoming dia	MM	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ3.5-2.0
Outgoing dia	MM	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300
Single motor power	Kw	90-55	75-55	37-22	15-7.5
Note: Please contact me directly if you want to know more machine details.

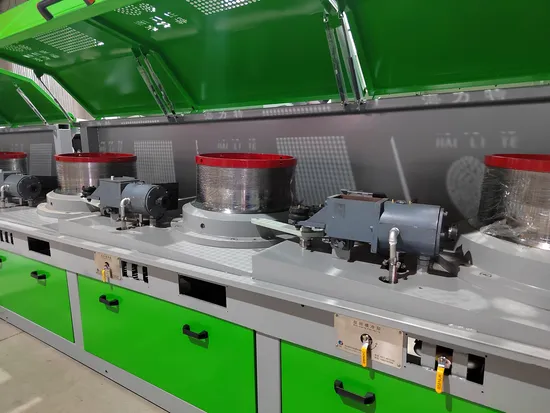

Detailed Photos
Product Application
Automatic high speed high/low carbon steel copper straight line wire drawing machine price for nail making/drawings wire machine
The Straight line wire drawing machine is the important process of producing the steel wire. Such as: •High carbon steel wire (PC wire, wire rope, spring wire, steel cord, hose wire, bead wire, saw wire ) •Low carbon steel wire (Mesh, fence, nail, steel fiber, welding wire, construction)
Our customer

HEbei Hylite company's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to theRomania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam,Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.

---
