Steel Plate Leveling Metal Sheet Straightener

Product Description

steel plate leveling metal sheet straightener
Advantage of sheet straightening used cut to length line
1.This Metal Sheet slitting leveling cut to length machine adopts steel welded structure, hydraulic transmission,easy to operate, reliable performance, nice appearance.
2.Blade gap is adjusted according to sign post, can adjust light quickly.
3.It has light for wire device, and can non-polar adjust route.
4.It adopts fence type safety device.
5.Size of rear block stop and shearing numbers has digitaldisplay apparatus.

No.	steel sheet metal straightening machine
1	Suitable to process	PPGI,galvanized sheet,carbon steel and stainless steel plate
2	Thickness of raw material	Cutting:Max 2mm
3	Roller station	Up :6 rollers Down:7 rollers
4	Voltage	380V,50HZ,3Phase
5	Main frame	400 H beams
6	Side-wall thickness	60mm
7	Diameter of shaft	¢130mm
8	Chain size	1.2Inch
9	Motor power	7.5kw(Siemens)
10	Touch screen/PLC	Siemens
11	Transmission	Gear transmission
12	Machine size	2800x2000x2000m
13	Machine weight	About 3.8Tons

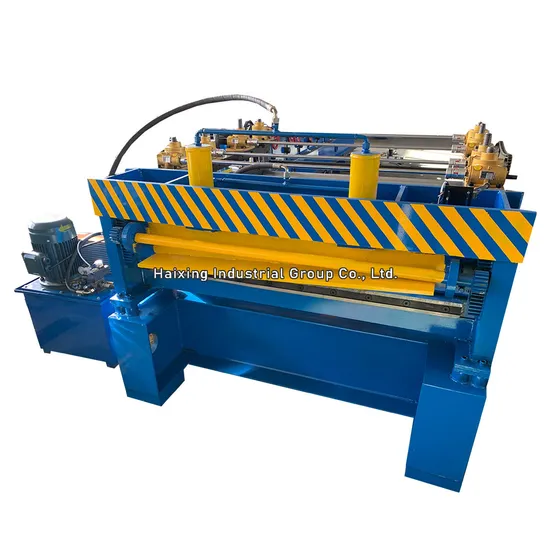

steel sheet metal straightening machine picture
steel sheet metal straightening machine after sales services
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Company infomation
Tianjin Haixing Imp & Exp Co., Ltd. Is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of machines. It is located in northwest of Tianjin, China . As a long history of cold roll forming machine production base. For example :color steel roofing sheet roll forming machines, C&Z Purlin machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. We would like to invite you come and join us to build our mutual benefit.

---
