Product Details
Product Description
Product Description
Description

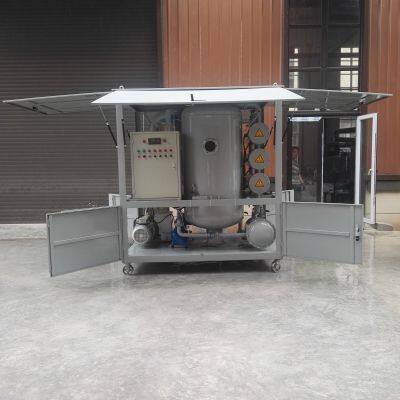

Usage of Transformer Oil Recycling Machine:
1.ZJA series vacuum transformer oil filtration plantsare widely used for industries of the power plant, power station, electricity company, railway, petrochemical, metallurgy and transformers manufacturing, etc. It applies to the purification operation of insulating oil such as unqualified transformer oil, mutual inductor oil, circuit breaker oil, capacitor oil, cable oil and high voltage switch oil, etc to remove water, gas and mechanical impurities and improve flash point and dielectric strength of the insulating oil. The machine can be working to treat unqualified transformer oil online without power-off and machine-stop, no need to change oil, no filter paper and transformer on-load. It can be also used for vacuum oil filling and electric equipment vacuum drying as well as transformer vacuum evacuation operation.
2.The customers' requests can be met by adopting PLC intelligent control, touch screen and dynamical display.
3.On line water tester is available.
4.Available in mobile option, immovable option and trailer.
5.Oil purifiers can be made in hermetical, canopy-covering, open and frame style.
6.Can choose a water-ring vacuum pump.
Parameters of Transformer Oil Recycling Machine:
Item
| Unit
| ZJA-30
| ZJA-50
| ZJA-70
| ZJA-100
| ZJA-150
| ZJA-200
| ZJA-300
|
Flow Rate
| L/H
| 1800
| 3000
| 4500
| 6000
| 10000
| 12000
| 18000
|
Vacuum Range
| MPa
| 0.007
|
Max Vacuum Range
| Pa
| ≤50
|
Working Pressure
| MPa
| ≤0.4
|
Temperature Range
| ℃
| 45-65
|
Water Content
| PPm
| ≤3-5
|
Gas Content
| %
| ≤0.1
|
Breakdown Voltage
| Kv
| 75
|
Dielectric Loss
| tgd
| ≤0.005
|
Advantages of Transformer Oil Filtration Plants:
Unique high-efficiency dehydration and degassing system which adopts large-area three-dimensional flash evaporation technique to removes water and gas in the oil.
The precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision can help to remove mechanical impurities from the oil effectively. While the filters are with self-inspection function for the pollutant-containing status.
The heating system adopts the most optimized pipeline design to ensure even heating and stable oil temperatures.
Equipped with an automatic temperature control system, automatic liquid-level control system, automatic defoaming control system, automatic pressure protection system and high-quality main components to ensure operation of the equipment with high reliability and perfect performance.
The transformer oil filtration plants support on-line operations without supervision with indicators to show operation status.
With electrical control inter-lock design. The vacuum system, oil pump system and heating system are interlocked in control to avoid the bad effect of the wrong operation.
Equipped with an indication for changing filters and automatic stop devices for overloaded filters.
Equipped with an emergency stop for electric leakage and power overload to protect the motor.
With phase-sequence, the phase loses protection function and safety control for sudden shut-down.
After-sales Service:
We could send the spare parts to you by courier.
We could make the guiding pictures and videos to you for a solution.
We could arrange technologists to help you.
Extra Service:
We could arrange to visit the most advanced local factory for communication and learning.
We could give you advice about the design for your warehouse building.
We will share advanced production technology for free.
>>
