Product Details
Product Description
Product Description
Product Introduction

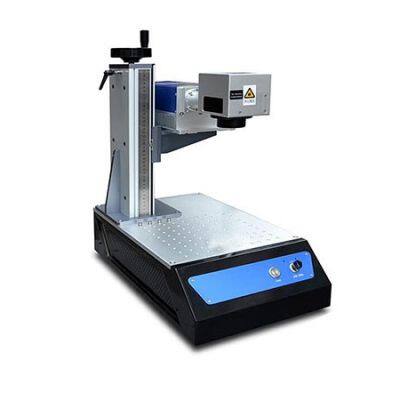

UV laser marker can be accurate to microns, metal or non-metallic materials can marked by UV laser. It’s widely used for marking on different types of products and equipment, such as used in food and medical package.
The whole machine has stable performance, small size and low power consumption.
Product Features
1. Applicable for many different industries and fields.
2. Full power UV laser source.
3. Nano-engraved focus mirror.
4. Support vector graphics, two-dimensional codes, bar-codes, skip code, jumping code, etc.
5. Rapid speed marking effect.
6. Adjustable lifting handle for accurate focus distance.
7. This UV laser marking machine has big working table.
Application
1. Applicable materials: UV laser marking machine is widely used for marking on surface of metal and non-metal materials, such as stainless steel, carbon steel, brass, aluminum alloy, plastic, pvc, glass,ceramic and so on.
2. Applicable industry: UV laser marking machine is applicable for many different fields for different customized requirement, such as household DIY, store customization, business gift, maker teaching, product marking and so on.
Technical Data
Product Name
| 3w 5w Mini Small Size UV laser marking Engraving machine
|
Model No.
| PE-UV-03
| PE-UV-05
|
Laser Power
| 3 Watts
| 5 Watts
|
Marking Area
| 110*110mm-160*160mm(Can be customized)
|
Marking Speed
| 7000mm/s
|
Line Speed
| 600-1000 characters/min
|
Marking Precision
| ≦0.001mm
|
Wave Length
| 355nm
|
Input Voltage
| 100-240 V
|
Cooling System
| Air cooling system
|
Support System
| Windows7/8/10
|
Support Format
| AI/PLT/PNG/DXF
|
Pulse Frequency
| 20KHZ-60KHZ
|
Working Medium
| Ultra violate
|
Working Temperature
| 10--45℃
|
Text Shaped
| 0.6mm (Chinese character)
0.2mm (English letter)
|
Support Language
| Multi-languages can be chosen
(English is default, other is optional. Please inform us in advance which you want)
|
Product weight
| 30.75 KG
|
>>
