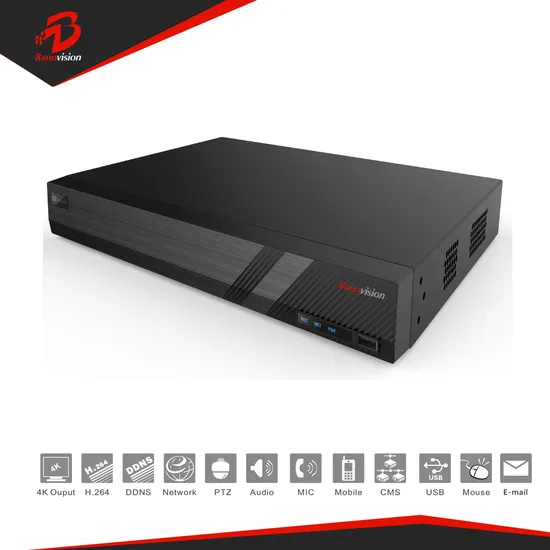

Banovision Security H. 265 5MP 4K Hybrid 4CH Xvr Surveillance CCTV Camera Standalone DVR

Product Description

Features
• 4 CH TVI / CVI / AHD video input
• 4 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
• Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timer / motion / sensor
• Playback : 4 CH simultaneously playback
• Search: time slice, time, event ( manual, sensor, motion ), tag search
• Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
• Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log review and device status review
• HDMI 4K output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phone and PAD
• Powerful smart phone & Pad surveillance with iOS and Andriod OS

Specification

Model		BA-1D5104
System	Compression	Standard H.265 High Profile
	CPU	Cortex X9
	OS	Embedded Linux
Video	Input	BNC × 4
	Resolution	TVI / AHD: 5MP@20fps; 4MP, 3MP, 1080P , 720P , WD1 real time CVI : 1080P, 720P real time
	IP Input	2CH ( Up to 6CH )
	Output	HDMI × 1: 2560 × 1440, 1920 × 1080, 1280 × 1024 VGA × 1: 1920 × 1080, 1280 × 1024 BNC × 1: CVBS ( used as the main or spot output )
Audio	Input	RCA × 1
	Output	RCA × 1
	Two-way audio	Take up channel one audio input
Record	Resolution	5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
	Frame Rate	5MP: 10fps (PAL / NTSC) 4MP / 3MP: 12 fps (PAL) / 15 fps (NTSC) 4MP lite/1080P/720P/WD1: 25 fps (PAL) / 30 fps (NTSC)
	Bit Rate	768Kbps ~ 8Mbps
	Mode	Manual, timer, motion, sensor
IP Input	Resolution	3MP / 1080P / 960P / 720P
	Frame Rate	25fps (PAL) / 30fps ( NTSC )
Playback	Playback	4 CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, sensor, motion, exception
	Input	4
	Output	1
	Triggering	Record, snap, preset, e-mail, etc.
Network	Interface	RJ45 10 / 100Mbps × 1
	Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple users online
Mobile Device	OS	iOS, Andriod
Storage	HDD	SATA × 1, max 8T
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	RS485	RS485 × 1, connect to PTZ or keyboard
	USB	USB 2.0 × 2 ( one in the front panel and the other in the rear panel)
	Remote Controller	Yes
Others	Power Supply	DC12V
	Consumption	≤ 5W ( without HDD )
	Dimensions ( mm )	300 × 248 × 52 ( W × D × H )
	Work Environment	-10 ~ 50 ºC,10% ~ 90% humidity

---
