Vmc China Supplier Linear Guideway Small CNC Machining Center 3 Axis Bt30 Bt40 Spindle Xh7126 CNC Milling Machine

US$19,000.00
1-9 Sets
US$16,000.00
10+ Sets

Basic Info.

Model NO.
XH7126
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.006mm
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Type
Vertical CNC Milling Machine
Guideway
Taiwan Linear Guideway
Worktable Size
800X260mm
X/Y/Z Axis Travel
450/320/400mm
Spindle
Bt40
OEM
Available
Delivery Time
One Month
Color
Customized
Voltage
Customized
Motor Power
3.7kw
Atc
12 Tools Atc
Spindle Speed
6000rpm
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg

Product Description

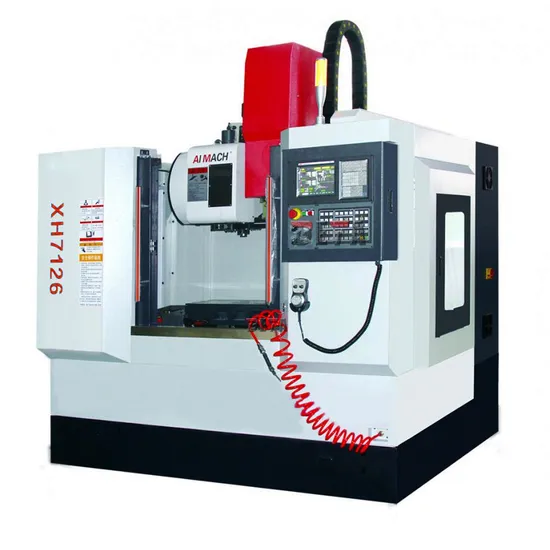

Vertical CNC Milling Machine Center with ATC 12 Tools
Model XH7126
Item Unit XH7126
Worktable size mm 800x260
T-slot mm 14x3x80
Max. loading capacity of worktable kg 200
Worktable travel X*Y*Z mm 450/320/400
Distance between spindle nose to table mm 90-520
Distance between spindle centre to column surface mm 360
Rapid moving speed X/Y/Z m/min 15/15/15
Cutting feeding speed X/Y/Z mm/min 1-6000
Spindle taper BT40
Max. spindle speed rpm 6000
Spindle motor power kw 3.7 servo
Position accuracy mm 0.008
Re-position accuracy mm 0.006
Automatic Tool magazine pieces pcs 12 pcs
Max.tools weight kg 8
Max.tools size mm 80/150
Time of changing tool s 4
Overall size mm 2200*1900*2200mm
Machine weight kg 2200 kg

Standard accessories:
GSK CNC controller
X/Y/Z axis servo motor
3-axis linear guide way
Taiwan BT40 spindle 6000rpm,
Taiwan 12 pcs tools umbrella type automatic tool changer
full enclosed protection cover
work light
alarm light
automatic cooling system
centralized lubrication system
Optional accessories:
Siemens/Fanuc CNC controller
The 4th axis dividing head
Chip conveyor
Spindle oil cooling
Spindle speed 10000 rpm
Tool measuring Renishaw tool setter
