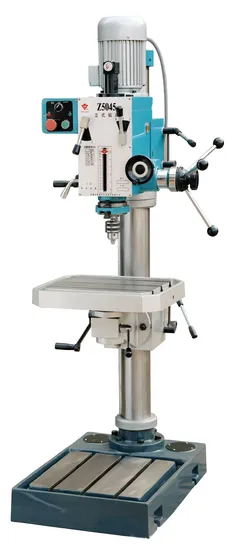

Popular Upright Drilling Machine (Z5032 Z4040 Z5045)

Product Description

Drilling, milling and tapping
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise

Upright Drilling Machine	Z5032	Z5040	Z5045
Max. drilling capacity	32mm	40mm	45mm
Spindle taper	M. T. 3 or R8	M. T. 4	M. T. 4
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r. p. m	80-1250 r. p. m	80-1250 r. p. m
60Hz	95-1500 r. p. m	95-1500 r. p. m	95-1500 r. p. m
Min. distance from spindle axis to column	283mm	283mm	283mm
Max. distance from spindle nose to worktable	725mm	725mm	725mm
Max. distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max. travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal/perpendicular)	360° /± 90°	360° /± 90°	360° /± 90°
Max. travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380× 300mm	380× 300mm	380× 300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	± 45°	± 45°	± 45°
Size of stand worktable of avaliability	417× 416mm	417× 416mm	417× 416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r. p. m	1400 r. p. m	1400 r. p. m
Net weight/Gross weight	430kg/480kg	432kg/482kg	435kg/485kg
Packing size	1850× 750× 1000mm	1850× 750× 1000mm	1850× 750× 1000mm
Loading amount	18pcs/20" container	18pcs/20" container	18pcs/20" container

---
