Shinho Fusionadora De Fibra Optica S-16 Fusion Splicer Machine

Product Description

Product Description

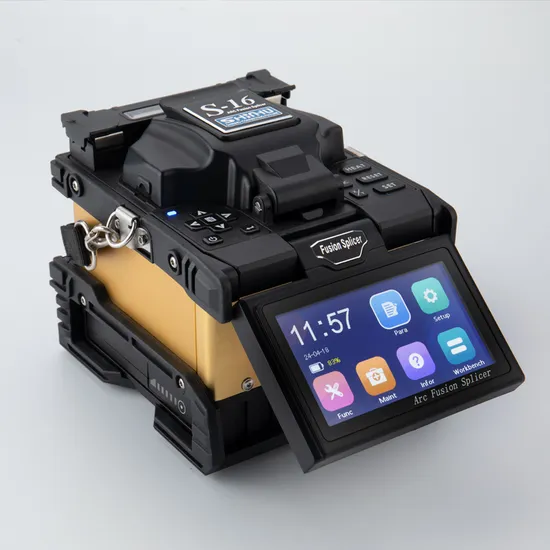

Shinho Fusionadora de Fibra Optica S-16 Fusion Splicer Machine
6 seconds splicing & 20 seconds heating
Special buttons design
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Anti-shock, anti-vibration, dust-proof & water-resistant
Apply to bare fiber, pigtails, drop cable etc. Suitable for FTTx, FTTH, CATV,MAN projects Product Parameters

Applicable Fiber	G651/G652/G653/G655/G657 etc.
Cladding Diameter	80~150μm
Coating Diameter	160~3000μm
Cleaved Length	10~16mm ( coating diameter<250μm), 16mm (coating diameter:250~1000μm)
Typical Splice Loss	G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB
Return Loss	>60dB
Splicing Program	40 modes
Operation Mode	Manual/ Auto
Auto-Heating	Available
Splicing Time	6~12 seconds
Heating Time	20~26 seconds for 40mm and 60mm shrinkable sleeves
Fiber Magnification	320X(X or Y view), 160X(X and Y view)
Viewing Display	Dual high sensitivity camera, 4.3"HD color LCD touch screen
Data Storage	8000 groups fusion records
Loss Evaluation	Available
Tension Test	1.8~2.2N
Interface	GUI menu interface, easy for operation
Battery Capacity	Detachable 5200mAh Li-battery , typical 250 cycles splicing and heating
Power Supply	Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V
Electrode Life	More than 4000 ARC discharges, easy to replace
Terminal	USB 2.0 port, for software upgrading, records exporting
Operating Condition	Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s
Dimension/Weight	165mm(L)×135mm(W)×140mm(H)/2.02kg(with battery)

Detailed Photos
Certifications
About Us
Why Choose Us
1. Reliable product quality
1) Factory with ISO9001:2015 quality management system.
2) Strict quality control process from materials to finished products and package.
3) Vibration testing for every fusion splicer (3 hours).
4) Splicing loss testing by OTDR for every fusion splicer (50 times).
5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).

2. Satisfying after-sales service
1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.
2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.
3) 24 months warranty period. Within warranty period, all repair and replacement are for free.
4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.

3. Industry technology leader
1) More than 20 years experience in the field. Keep developing & upgrading new technology.
2) The latest fiber core to core alignment technology, high level industrial standard design.
3) Different kinds fusion splicers cover all fiber splicing applications.

4. Strong production capacity
1) More than 60,000 units machines are produced every year.
2) Supply fusion splicers to more than 50 countries and zones in the world.
3) OEM/ODM is available.

---
