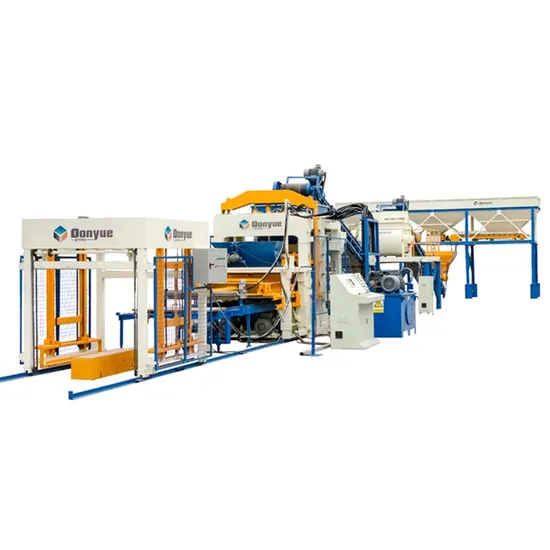

Qt12-15 Construction Block Making Machine Cement Brick Making Machine Price

Product Description

QT12-15 Automatic concrete block making machine block making machineryProducts Describtion
Main Features 1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
Main Specifications

Technical Parameter
Dimension of host machine	3800mm*2500mm*3550mm	Power of host machine	56.2kw
Weight of host machine	13.5T	Vibration force	100-130KN
Molding area	1196x880mm	Mixer Model	JS750
Water consumption	10-20T/Day	Pallet size	1400*900*30MM
Workshop	260M2

Production Capacity

size(L*W*H)	pcs/mould	pcs/hour	pcs/8hour
400*200*200mm	12	2160-2880	17280-23040
400*150*200mm	15	2520-2940	20160-23520
200*110*60mm	35	6300	50400

Cement Silo

Length:11M

Capacity: 50T

Diameter:2.15M

Total weight:5t

Batching Machine
Weigh bucket capacity:1200L
Productivity:56m³/h
Patching precision:±1%
Max weighing capacity : 3 T
Quantity of material matching :3 set
Work loading height :3000 mm
Feeding belt speed: 1s/m
Power:12 kw
Weight:4 T
Length*width*higth :9000X2200X3500mm
Brick Plant View
Product Application 1. QT12-15 fully moulds concrete brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. QT12-15 fully moulds concrete brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.
Finished block

---
