Mutifunction ID and Od Universal Large Grinding Bench

Product Description

MW1463B Large Universal cylindrical grinding machine

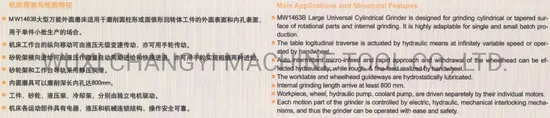

Main applications and structural features
MW1463B large universal cylindrical grinder is designed for grinding cylindrical or tapered surface of rotational parts and internal grinding. It is highly adaptable for single and small batch production.
The table longitudinal traverse is actuated by hydraulic means at infinitely variable speed or operated by hand wheel.
Auto intermittent micro-infeed and rapid approach and withdrawal of the wheelhead can be effected hydraulically; while rough- & fine-feed realized by hand wheel.
The worktable and wheel head guideways are hydrostatically lubricated.
Internal grinding length arrive at least 800mm.
Work piece, grinding wheel, hydraulic pump, coolant pump, are driven separately by their individual motors.
Each motion part of the grinder is controlled by electric, hydraulic,mechanical interlocking mechanisms, and thus the grinder can be operated with ease and safety.

Specifications and technical parameters
Grinding diameter	φ30-630mm
Grinding I.D. diameter	φ30-250mm
Max. Grinding length(OD grinding)	2000/3000/4000/5000mm
Max. Grinding length (ID grinding)	800mm
Max. Work piece weight	3000kg
Grinding wheel size (O.D. X W X I.D. )	φ750 x 75 x φ305mm
O.D. Grinding wheel-spindle rotary speed	870 rpm
I.D. grinding wheel rotary speed	10000,6000,4200,3000 rpm
Center height	335mm
Max. Worktable traverse	2150/3200/4200/5200 mm
Max. Worktable travel speed	3 m/min
Grinding wheel linear speed	35m/sec.
Grinding wheel head rapid approach and withdrawal traverse	0.02/0.0025mm
Automatic intermittent infeed(fine/coarse)	0.02/0.0025mm
Manual microfeed (fine/coarse)	0.02/0.0025mm
Hydraulic pump displacement	25ml/r
Hydraulic pump pressure	1.6Mpa
Coolant flow	50L/min
Overall dimensions (L X W X H)	5320 x 2140 x 1550
Main accessories
Open-type steady rest	1 set
Grinding wheel flange	1 set
Leveling wedge	12/12/18/22 sets
Measuring bridge-board	1 pc
Electric cabinet	1 set
Lubricant tank	1 set
Center	2 pc
Nut	2 pc.
Grinding wheel dresser	1 set
Grinding wheel balance mandrel	1 set
Internal grinding tool	1 set
Special customized accessories
Paper-tape filter	1 set
Center grinding unit	1 set
Grinding wheel balancing stand	1 set
Grinding indicating instrument	1 set
Single-axis digital display and magnetic bar	1 set
Magnetic separater	1 set
Carbide-tipped center	1 set
Internal stick	1 set
Working accuracy (standard test work piece)
Roundness	0.005mm
Uniformity of diameter in longitudinal section	0.008mm
Surface roughness (O.D.)	Ra0.32 um
Surface roughness ( I.D.)	Ra0.63 um

---
