China Conventional Milling Machinezx7550cw Drilling and Milling Machine Price

Product Description

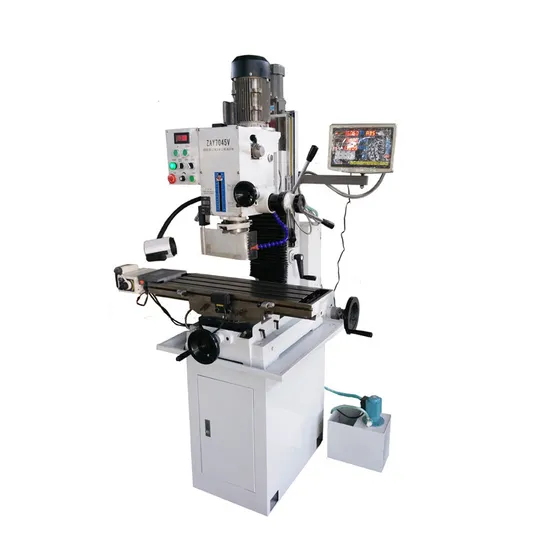

BF20/BF20L/BF25/BF25L/BF32/BF32L Drilling and Milling Machine

Convincing arguments: quality, efficiency and price:
> Spindle sleeve feed via star grip(drilling)
> Fine crossfeed of spindle sleeve when milling
> Feed spindles can be adjusted without clearance due to adjustable spindle nuts
> Stable and precise dovetail control adjustable with V-ledges
> Expansion bellow as guide protection
> Easy and clear operation due to adjustable control panel
> All travels are readable on scales
> Electronic infinitely variable drive
> The drill head can be inclined by ±90°, thus permitting milling and drilling operations at any angular position
> Accurate infeed by positioning graduated collar on any handwheels
Standard Accessories
> Draw bar
> Morse taper MT2/B16-M10
Optional Accessories
> Morse collet chuck MT2/M10
> End mill cutter kit HSS 12pcs/set
> Keyless chuck 1-13mm/B16
> Milling chuck kit Q24-16(8pcs/set)
> Machine vice QG100
> Face milling cutter ø63/MT2
> Stand & chip tray
Technical Parameters

Model No.	Unit	BF20/BF20L	BF25/BF25L	BF32/BF32L
CAPACITY
drilling capacity(max.)	mm	Ø20(0.79")	Ø20(0.79")	Ø32(1.26")
milling capacity cutter head(max.)	mm	Ø63(2.48")	Ø63(2.48")	Ø76(3.00")
milling capacity end mill cutter(max.)	mm	Ø20(0.79")	Ø20(0.79")	Ø20(0.79")
SPINDLE HOLDING FIXTURE
spindle taper		MT2/M10	MT3/M12	MT3/M12
sleeve diameter	mm	Ø60(2.36")	Ø60(2.36")	Ø70(2.76")
sleeve travel	mm	50(1.97")	50(1.97")	50(1.97")
distance spindle-column	mm	201(7.91")	201(7.91")	240(9.45")
DRILL-MILL HEAD
spindle inclined angle	°	±90	±90	±90
spindle speed	rpm	L: 90-1480 H: 150-3000	L: 90-1480 H: 150-3000	L: 50-2250 H: 50-5500
CROSS TABLE
tabel(L×W)	mm	500×180/700×180(19.69"×7.09"/27.56"×7.09")	500×180/700×180(19.69"×7.09"/27.56"×7.09")	700×210/900×210(27.56"×8.27"/35.43"×8.27")
Y-axis travel	mm	175(6.89")	175(6.89")	210(8.27")
X-axis travel	mm	280/480(11.10"/18.90")	280/480(11.10"/18.90")	450/650(17.72"/25.59")
Z-axis travel	mm	380(14.96")	380(14.96")	380(14.96")
T-slot size/distance/number	mm	12/63/3	12/63/3	12/63/3
distance spindle-cross table(max.)	mm	380(14.96")	380(14.96")	360(14.25")
ELECTRIC SUPPLY
motor	W	850	850	1100
DIMENSIONS AND WEIGHT
size(L×W×H)	mm	722×550×770	722×550×770	772×870×710
packing size(L×W×H)	mm	620×560×920	620×560×920	710×890×860
N.W./G.W.	kg	105/145	105/145	220/265

---
