Intelligent Easy-to-Use Five-Axis CNC Laser Tube and H-Beam Cutting Machine, Model Sdyp-6050, Max Dia. 500mm Max Thickness 30mm Store 200g

US$62,000.00-72,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SDYP-6050

Application

Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Gantry Type

Laser Classification

Free Electron Laser

Laser Technology

Laser Flame Cutting

Outer Diameter of The Tube

30-500mm

Tube Thickness

30mm

Cutting Length

12000mm

Round Tube Load

4500kg

a-Axis

360degree Free Rotation

Y-Axis Torch Moves Horizontall

430mm

B-Axis Torch

a= +-60degree

C-Axis Torch

B= +-45degree

Z-Axis Torch Vertical Lifting

Maximum Stroke 300mm

Cutting Speed

10-8000mm/Min

Transport Package

Suitable for Export Transportation

Specification

30-500mm

Trademark

SAFETY

Origin

China

HS Code

8456110090

Production Capacity

300 Per Year

Product Description

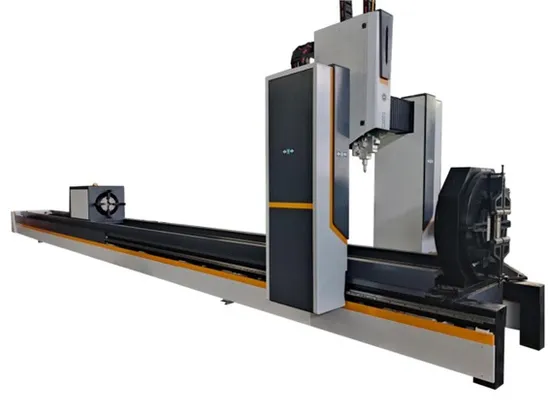

5-Axis Laser Tube and H-Beam cutting machine, model SDYP-6032
Product Description
Product Description
This machine adopts five-axis perfect cutting, which can cut round pipe, square pipe, channel steel and angle steel. It adopts a 19-inch high-resolution LCD color display, which can display cutting graphics and cutting running tracks. Cutting programs also can be edited manually. The storage function of the device is powerful, the control system can store 200G files and can be used at will. In addition, it supports functions such as pause, forward, backward, and speed regulation during processing. It is driven by high-efficiency servo motor, with fast speed, high efficiency, high precision and stable operation. High-flexible shielded wire is used to truly resist high-frequency interference. It is suitable for various fiber optic models. The movable beam can save tailings. The front chuck is equipped with two sets of intelligent follow-up splicing devices to facilitate the For long material processing requirements, there is a set of intelligent follow-up material support systems in between, so as to ensure the high cutting accuracy for longer H-beam or U-channel. Product Parameters
1. Specification of cutting steel pipe

Cuttable Material Type	Round tube,Square tube,Rectangular tube,Channel steel,Angle steel
Fiber cutting tube wall thickness	Max 30mm quality 25mm or less
cut material length	6000mm
Diagonal Section	30-320mm tube,Square 226mm
Overall body length	8000mm
Overall length of the machine	10000mm
equipment weight	400KG
positioning accuracy	0.05-0.1mm
Cutting accuracy	0.2-0.6mm

cutting speed

Max cutting speed

20m/min

3,The positioning accuracy of cutting torch movement is less than or equal to ±0.03mm; the positioning accuracy of busbar is less than or equal to ±0.03mm; the positioning accuracy of inclined mouth is ±0.05°
4,Equipment basic specifications

No.	Name	Model	Manufacturer
1	Electrical control cabinet	ZLQ-XGEC	EOE-hzh
2	laser	4000W	The Max
3	CNC pipe cutting system	EOE-HZH	EOE-HZH
4	bed composition	Double bottom beam design 14m	EOE-HZH
5	Servo drives and motors	1.0KW	EOE Pure Servo motor
6	Front and rear chuck motors	1.0KW	EOE Pure Servo motor
7	Rack thickness	6mm base/8mm X beam	EOE
8	X Z axis motor	400W	Passonic servo motor
9	Y-axis motor	750W	EOEservo motor
10	reducer	40:1	EOE
11	Spin chuck	Diagonal 20-500mm	EOE
12	front chuck	Manual double-action design self-centering	EOE
13	rear chuck	Pneumatic single-acting design self-centering	EOE
14	head assembly	1 set	EOE
15	Machine head gantry	1set	EOE
16	train track	14 sets (2m/set)	EOE
17	Heavy-Duty Front Catcher Unit	2 sets,with buffing	EOE
18	Heavy-duty intermediate support system	1 set,with buffing	EOE
19	Laser special screw air compressor	15kw screw air compressor + 1 cubic air storage tank + cold dryer	EOE
20	cable	Heat resistance grade PE-7, plus shield	EOE
21	computer	Industrial control high and low temperature computer	EOE
22	Distribution box	Add two more cooling treatments	EOE
23	Move the wheel	Increased anti-wear and anti-warping design	EOE
24	chiller	6000w	EOE

Main accessories and functional display:
1.Chuck and clamper
This chuck is equipped with a diameter of 245mm, self centering function, dual pneumatic chucks, and automatic centering of the pipe by clamping on both sides
2. Cross border cutting can replace three chucks
The The biggest advantage of this equipment is that it can perform cross-border cutting, it means the gantry can move backwards along the guide rail to the middle of the track ,or the position of the rear chuck for cutting, so as to optimize the tailings to minimize, and greatly helping customers save costs.
3.Intelligent support in the middle
Intelligent support in the middle: When the machine cut 12 meters of material, if there are not intelligent support in the middle, material may be sinking during the cutting process. So with this intelligent the machine can ensure the high cutting precision as cutting longer materials.
4.Guide way
We use industrial heavy-duty linear guides, which are not easily deformed when cutting large pipes for a long time.
5.Gear rack: "Vastun" from Germany
Adopt gear rack brand "Vastun" imported from Germany, with higher cutting accuracy
Control system features
l1.Hardware board interpolation, stable and reliable, simple wiring
l2.Support manual box operation, improve production efficiency
l3.You can use the file to set the speed, or use the system to set the speed
l4.File speed setting supports line speed and synthesis speed
5.The power clamp displays the maximum size of the processing graphics, which is intuitive and convenient
l6.Graphics can be zoomed in and out
l7.The limit can be used as the zero return switch, which is simple and convenient.
l8.The starting position of processing is simple, no need to consider the pendulum axis
l9.During processing, it can move forward and backward, and can be offset and returned
l10.Parameter backup and parameter restoration.
l11. Optional hole to start cutting, convenient and fast.
System performance parameters
l1. Control accuracy: up to ±0.05mm
l2. Maximum running speed: 20000mm/min
