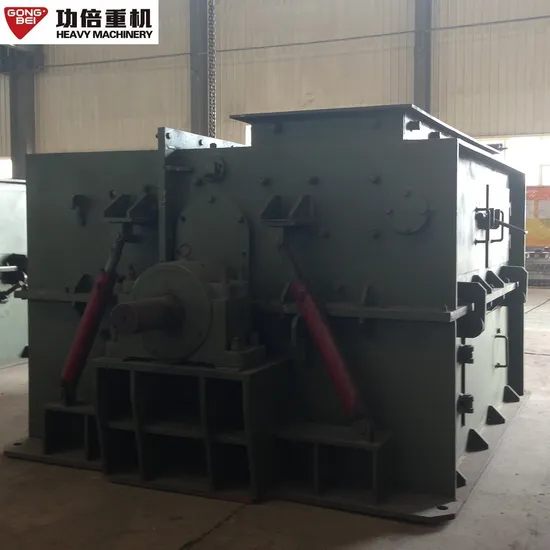

Krc1221 Ring Hammer Coarse Crusher for Coal Limestone Crushing with Discharge Size 30mm

Product Description

SHIJIAZHUANG GONGBEI HEAVY MACHINERY LIMITED COMPANY
§§ Characteristics: 1. High wear resistant hammer
2. Hydraulic coupling transmission for large power crusher with soft start
3. Resistance to short-time over load to protect electrical motor and main shaft
4. Forged alloy shaft with quenching and tempering
5. Long service life of sieve §§ Scope of application: Applicable to crushing of brittle materials such as ROM coal, gangue, limestone etc. Discharge size is ≤30mm with large production capacity. Widely used with coal mill in large scale coal-fired power plant.
§§ Structure:
§§ Parameters:

Specifications	Capacity t/h	Electrical motor			Rotator		Input size (mm)	Discharge size (mm)	Dimension (mm)	Weight kg
		Power (kw)	Rotary speed rpm	Voltage (V)	Working diameter (mm)	Working length (mm)
PCH0604	22-35	18.5	970	380	600	400	<200	≤30	866*1265*870	2000
PCH0606	30-60	30			600	600			1100*1265*870	3000
PCH0808	80-180	75	740		800	800			1622*1620*1080	4000
PCH1010	200-245	110			1000	1000	<300		1822*2000*1395	8000
PCH1016	400-500	220		6000 /10000	1000	1600			2520*2000*1395	10000
PCH1216	500-600	355			1200	1600	<400		3300*3200*1950	20000
PCH1218	600-800	400			1200	1800			3300*3400*1950	24000
PCH1221	800-1000	450			1200	2100			3300*3650*1950	25000
PCH1226	1200	560			1200	2600			3300*4160*1950	29000
PCH1229	1400	630			1200	2900			3300*4400*1950	31000
PCH1826	1700	710	490		1800	2600	<500		4000*4200*2700	42000
PCH1829	2000	1100			1800	2900			4000*4500*2700	45000
PCH1834	2000	1200			1800	3400			4000*5100*2700	54000

§§ Why choose GONGBEI products? 1. More than 40 years of technical research and development of material screening and crushing
2. The best R&D and technical personnel with the most achievements in screening and crushing fields
3. With various experiment database for then thousand materials
4. Entrusted National Inspection Center as third inspection party to ensure quality
5. Professionial aftersales service team §§ Solutions of crushing and screening technologies 1. Packaged technology for crushing and screening of material ranging form 0.1mm to 1000mm, equipment selection and development & manufacture.
2. Technology and equi0pments for crushing and screening of dry, wet and sticky materials, as well as technical upgrading service.
3. Patented technology and equipments for ultrafine grinding and crushing of material that is less than 3mm
4. Customized design and equipments dedicated for intelligent clean power generation, intensive coal separation, clean coal technology, fine chemical engineering, green mining, soil remediation, soil waste disposal and other materials handling etc..

---
