3/4/5 Axis Vmc Heavy Duty CNC Milling Machine Manufacturer Chs3000 Vertical Machining Center

Product Description

Product Description

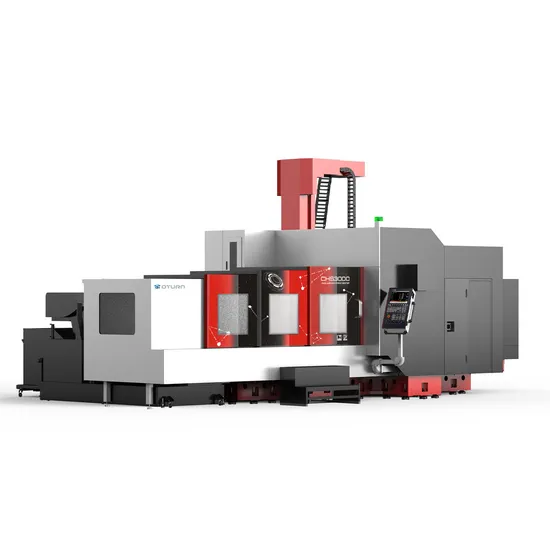

High-speed CNC vertical machining center CHS3000 has the characteristics of high rigidity, high precision and high efficiency processing. The column adopts a herringbone design with a large span, which can greatly enhance the bending and torsion strength of the column; the workbench adopts a reasonable slider span and is surface quenched to make the workbench evenly stressed and improve the hardness; the bed adopts a trapezoidal cross-section to reduce the The center of gravity improves torsional strength; the entire machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 48M/min, the T-T tool change time is only 4 seconds, the tool magazine is fully loaded, 24 hours of tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the high efficiency, continuous stability of the machine tool after leaving the factory. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing processes are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be entered into automatic lines for mass production.
Adopting C80 PLus system, 15-inch large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the CNC system The data processing capability and control performance are improved, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, which facilitates the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters

Item		Unit	Specification
Travel	X/Y/Z axis travel	mm	3000×1500×600
	Distance from spindle end face to worktable	mm	140-740
Worktable	Workbench (length × width)	mm	3000×1200
	shaped groove (number of grooves-width×pitch)	mm	7-22×150
	Maximum load of workbench	kg	2500
Three-axis feed	X/Y/Z axis rapid feed	m/min	30/36/36
	cutting feed rate	mm/min	1-15000
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	190/Built in
	Spindle taper hole	mm	A63
	Spindle maximum speed	r/min	24000
	Spindle motor power (continuous)	kW	57
	Spindle motor torque (continuous)	N.m	55
Tool magazine	Tool magazine capacity		24T
	Tool exchange time (T-T)	s	4
	Maximum tool diameter (full tool/empty tool)	mm	70/120
	Maximum tool length	mm	300
	Maximum tool weight	kg	8
Guide	X-axis guide rail	mm	45 (Roller)
	Y-axis guide rail		45 (Roller)
	Z-axis guide rail		45 (Roller)
Screw	X-axis screw		Φ63×20
	Y-axis screw		Φ50×16
	Z-axis screw		Φ36×12
Accuracy	Positioning accuracy	mm	±0.005/300
	Repeatability	mm	±0.003/300
Lubrication system	Lubrication unit capacity	L	4
	Oil separator type		Volumetric
Other	Air demand	kg/c	≥6
	Air flow	mm3/min	≥0.4
	Machine weight (combined)	t	20
	Mechanical dimensions (LxWxH)	mm	8200×3600×3800

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
