Factory Outlet Wholesale Rust Prevention Efficient and Durable POY Spinning Yarn Suction Gun for Manufacturing Machinery

Product Description

Product Description

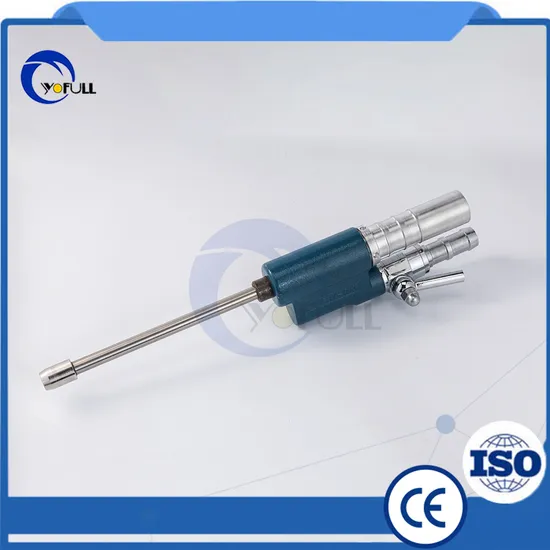

F and F+ series suction guns are designed to be suitable for FDY, POY yarn at high speed up to 8000m/min. F+ series is a modified version of F series of suctioin guns. It is made with a new configuration of nozzle and chamber, which is achieved with stronger suction force, compared to F series. Long life time thanks to materials used for suction gun body and internal parts.
F series

Model	F07/405-01	F07/420-01	F+10/385-01	F+07/415-01	F+05/382-01P
Operating Pressure (bar)	6-14	6-14	6-14	6-14	6-14
Air Consumption(m3/h)	52(Pe+1)	52(Pe+1)	58(Pe+1)	58(Pe+1)	58(Pe+1)
Max. yarn speed(m/min)	8000	8000	8000	8000	8000
Tube internal diameter(mm)	7	7	10	7	5
Tube length(mm)	200	205	190	200	175
Max. yarn count (dtex)	3000	3000	10000	3000	1600
Weigth(kg)	1.2	1.1	1.35	1.05	1.0
Working method	twisting	twisting	twisting	twisting	twisting
Air inlet connection	Φ32mm 1"BSP	Φ25mm 3/4"BSP	Φ32mm 1"BSP	Φ25mm 3/4"BSP	Φ25mm 3/4"BSP
Air exhause connection	Φ32mm	Φ32mm	Φ32mm	Φ32mm	Φ32mm

Detailed Photos
Related Products
Click on the image to learn more about the product.


Industry Application
Company Profile

Zhejiang Yufeng Machinery Co.,Ltd. boasts over two decades of focused expertise in the melt filtration sector. With a seamless integration of production,design,research,and sales,we offer a comprehensive range of products including melt filters and melt material valves. Holding ISO and CE certifications,our base in Wenzhou Longwan District serves as a hub of innovation.
Our dedication to advancement is evidenced by the introduction of rheological analysis software from the United States in 2009. Backed by a team of over 30 skilled technical designers,our offerings cater to diverse sectors: synthetic fibers,petrochemicals,chemical engineering,environmental protection,and water treatment.
Our product lineup spans melt filters,liquid filters,melt valves,and an assortment of filtration accessories. Notably,we've fostered enduring partnerships with esteemed domestic enterprises like PetroChina,Sinopec,Hengyi,Hengli,and Baihong,underscoring our industry standing.
Zhejiang Yufeng Machinery Co.,Ltd. is synonymous with precision engineering,quality assurance,and adaptability. We stand as a testament to continuous growth,innovation,and excellence. Leveraging our 20-year legacy,we eagerly anticipate sharing our expertise and products tailored to your unique needs.


Certifications
Attend fair
FAQ
Question 1: Are you a factory or a trading company?
Answer: We are a manufacturing facility.
Question 2: How can I obtain an accurate quotation?
Answer: To receive a precise quote, please provide us with detailed product requirements and specify your order quantity for cost estimation.
Question 3: What is your sample policy?
Answer: For most small, low-value items, we can supply samples at no cost, but you would be responsible for the courier charges. If the sample's value exceeds USD 20, we will require a 100% sample charge, and the courier costs will also be your responsibility.
Question 4: What are your payment terms?
Answer: For small orders, full payment is necessary upon placing the order. For larger orders, a 50% deposit is required before production, and the remaining balance should be settled before shipment.
Question 5: How can you ensure product quality?
Answer: 1. We have well-defined working and quality control procedures that we rigorously adhere to. 2. Our design and assembly teams possess extensive experience. 3. We manufacture most of our parts in-house, which makes it easier for us to maintain quality control.
Question 6: What is your lead time?
Answer: Please confirm the lead time with us on a per-order basis before finalizing your orders.

---
