Horizontal Lathe Machine CW62140DX3000

Product Description

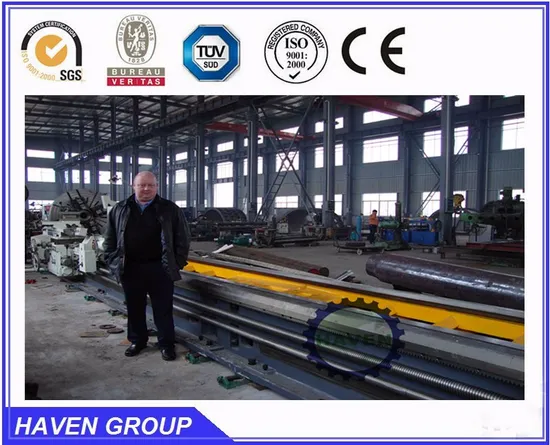

CW62140DX3000 Heavy Duty Horizontal Lathe Machine
Main features:
The lathe can perform to turn end -faces., cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides may be operated individually by power for cutting shot taper, long taper can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning.
They are characteristic of power, high spindle speed, high rigidity. The various ferrous and won-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Main specification:

SPECIFICATION		Models
		CW62100D	CW62125D	CW62140D	CW62160D	CW62180D
CAPACITY	Swing dia. over bed	1000	1250	1400	1600	1800
	Swing dia. over cross slide	630	880	1030	1030	1030
	Swing dia. on gap	1450	1700	1850	2050	2250
	Width of bed	755mm
	Max. workpiece length	1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
SPINDLE	Spindle nose	A15
	Spindle bore diameter	130mm
	Taper of spindle bore	Metric No. 140
	Range of spindle speed	3.15-315r/min 21 kinds
FEEDS	Longitudinal feeds range	0.1-12mm/r 56 kinds
	Transversal feed range	0.05-6mm/r 56kinds
	Metric tread range	1-120mm 44kinds
	Inch tread range	3/8-28teeth/inch 31kinds
	Modular thread range	0.5_60mm 45kinds
	Pitch thread range	1-56teeth/inch 25 kinds
TAILSTOCK	Tailstock center taper	Morse No.6
	tailstock center motion	300mm
	Tailstock center diameter	140mm
MOTORS	Main motor power	22kw
	rapid motor power	1.5kw
	Cool pump power	0.125kw

---
