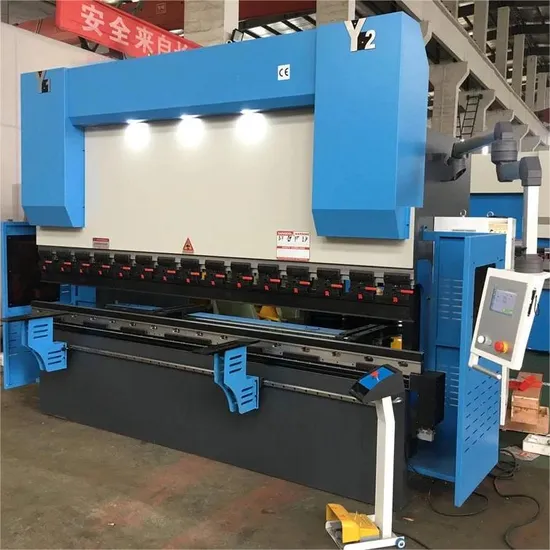

Hydraulic Press Brake E300p Nc 2 Axis Bending Machine for Sheet Metal

Product Description

Standard Equipment
Optional Control System
Optional Equipment
Details Images• safe and fast tool change.
• substantial improvement in time consumption and related costs.
• Secure against tool falling down.
• Available in manual, pneumatic, and hydraulic models.
• Mounting: Simply from the bottom into the housing, tighten-DONE!
• Easy to mount on your press brake. Modifying the cation of the press brake is not necessary. HYCULES BGA-2 BackGauge:
Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis
Hiwin Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.01 mm.
Fingers with double stop and micrometric adjustment. Proportional valve:
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Advantage:
The frequency response (response frequency) is higher and can be as high as 200Hz.
It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
Closed-loop control, signal feedback.
Original German imported products, longer service life. Product Parameters

Model	Bending Pressure (KN)	Bending Length (mm)	Uprights Distance (mm)	Throat Depth (mm)	Slider Stroke (mm)	Max. Opening Height (mm)	Y-axis Downward Speed (mm/sec)	Y-axis Back Stroke Speed (mm/sec)	Bending Angle Precision	Max. X-axis Distance (mm)	Workpiece Straightness (mm)	Backgauge Accuracy (mm/m)	Main Motor (KW)	Length*Width*Height (mm)	Weight (kg)
30T/1600	300	1600	950	230	100	320	80	70	<40	300	0.5	0.05	3	1800*1200*1620	2000
40T/1600	400	1600	950	230	100	320	80	70	<40	300	0.5	0.05	3	1800*1200*1820	2500
40T/2200	400	2200	1850	230	100	320	80	70	<40	600	0.5	0.05	5.5	2200*1200*1900	2750
40T/2500	400	2500	1850	230	100	320	80	70	0.5	600	0.5	0.05	5.5	2500*1200*1900	3000
50T/2500	500	2500	1850	230	100	320	80	70	0.5	600	0.5	0.05	5.5	2500*1200*2000	3400
63T/2500	630	2500	1900	250	100	320	80	70	0.5	600	0.5	0.05	5.5	2500*1300*2210	4000
63T/3200	630	3200	2560	250	100	320	80	70	0.5	600	0.5	0.05	5.5	3200*1300*2210	4800
80T/2500	800	2500	1990	300	100	320	80	70	0.5	600	0.5	0.05	7.5	2500*1400*2300	5000
80T/3200	800	3200	2560	320	100	350	80	70	0.5	600	0.5	0.05	7.5	3200*1500*2300	6000
80T/4000	800	4000	3200	320	100	350	80	70	0.5	600	0.5	0.05	7.5	4000*1500*2400	7000
100T/2500	1000	2500	1990	320	120	350	80	70	0.5	600	0.5	0.05	7.5	2500*1600*2400	6000
100T/3200	1000	3200	2600	320	150	400	80	70	0.5	600	0.5	0.05	7.5	3200*1600*2600	6800
100T/4000	1000	4000	3200	320	150	400	90	82	0.5	600	0.5	0.05	7.5	4000*1600*2600	8000
125T/2500	1250	2500	1990	320	150	400	90	82	0.5	600	0.5	0.05	11	2500*1600*2600	6000
125T/3200	1250	3200	2600	320	150	400	90	82	0.5	600	0.5	0.05	11	3200*1600*2600	7000
125T/4000	1250	4000	3200	320	150	400	90	82	0.5	600	0.5	0.05	11	4000*1600*2600	8500
160T/2500	1600	2500	1990	320	200	460	90	86	0.5	600	0.5	0.05	11	2500*1700*2700	8800
160T/3200	1600	3200	2580	320	200	460	90	86	0.5	600	0.5	0.05	11	3200*1700*2700	10000
160T/4000	1600	4000	2900	320	200	460	90	86	0.5	600	0.5	0.05	11	4000*1700*2800	11000
160T/5000	1600	5000	3900	320	200	460	90	86	0.5	600	0.5	0.05	11	5000*1900*3100	13500
160T/6000	1600	6000	4900	320	200	460	90	86	0.5	600	0.5	0.05	11	6300*1900*3200	18500
200T/2500	2000	3200	1990	320	200	460	90	86	0.5	600	0.5	0.05	11	3200*1950*2800	10000
200T/3200	2000	3200	2480	320	200	460	90	86	0.5	600	0.5	0.05	11	3200*1950*2800	11000
200T/4000	2000	4000	2900	320	200	460	90	86	0.5	600	0.5	0.05	11	4000*1950*2800	12500
200T/5000	2000	5000	3900	320	200	460	90	86	0.5	600	0.5	0.05	11	5000*1950*3000	14000
200T/6000	2000	6000	4900	320	200	460	90	86	0.5	600	0.5	0.05	11	6000*1950*3300	20000
250T/3200	2500	3200	2450	400	250	590	90	86	0.5	600	0.5	0.05	18.5	3250*2000*3200	18500
250T/4000	2500	4000	2900	400	250	590	90	86	0.5	600	0.5	0.05	18.5	4000*2000*3400	20000
250T/5000	2500	5000	3900	400	250	590	90	86	0.5	600	0.5	0.05	18.5	5000*2000*3400	23000
250T/6000	2500	6000	4900	400	250	590	90	86	0.5	600	0.5	0.05	18.5	6000*2000*3400	27000
300T/3200	3000	3200	2450	400	250	590	90	86	0.5	600	0.5	0.05	22	3200*2000*3450	20500
300T/4000	3000	4000	2900	400	250	590	90	86	0.5	600	0.5	0.05	22	4000*2000*3450	22000
300T/5000	3000	5000	3900	400	250	590	90	86	0.5	600	0.5	0.05	22	5000*2000*3450	25000
300T/6000	3000	6000	4900	400	250	590	90	86	0.5	600	0.5	0.05	22	6000*2000*3450	28500
400T/3200	4000	3200	2400	400	250	590	90	86	0.5	600	0.5	0.05	30	3200*2180*3400	22500
400T/4000	4000	4000	2900	400	250	590	90	86	0.5	600	0.5	0.05	30	4000*2180*3400	25000
400T/5000	4000	5000	3900	400	250	590	90	86	0.5	600	0.5	0.05	30	5000*2180*3500	29000
400T/6000	4000	6000	4900	400	250	590	90	86	0.5	600	0.5	0.05	30	6000*2180*3800	34000
500T/4000	5000	4000	2900	400	250	590	90	86	0.5	600	0.5	0.05	45	4050*3500*3700	36000
500T/5000	5000	5000	3900	400	250	590	90	86	0.5	600	0.5	0.05	45	5050*3500*3700	42000
500T/6000	5000	6000	4900	400	320	590	90	86	0.5	600	0.5	0.05	45	6050*3500*3700	54000
600T/4000	6000	4000	2900	400	320	590	90	86	0.5	600	0.5	0.05	55	4050*4500*3700	44000
600T/5000	6000	5000	3900	400	320	590	90	86	0.5	600	0.5	0.05	55	5050*4500*3700	51000
600T/6000	6000	6000	4900	400	320	590	90	86	0.5	600	0.5	0.05	55	6050*4500*3700	60000
600T/7000	6000	7000	5900	400	320	590	90	86	0.5	600	0.5	0.05	55	8050*4500*3700	66000
600T/8000	6000	8000	6900	400	320	590	90	86	0.5	600	0.5	0.05	55	9050*4500*3700	72000
