Automatic Takeaway Coffee Cup Making Machine Paper Tea Cup Machine Price

Product Description

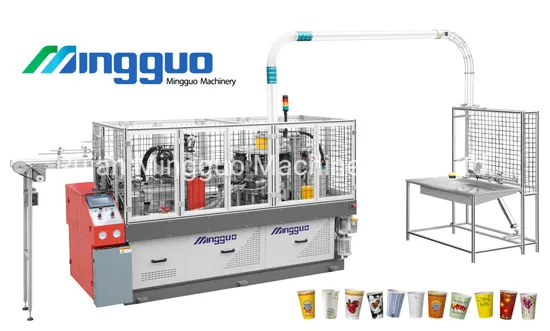

G800 New High-Speed Paper Cup Forming Machine
Machine Description
MG-G800 high-speed paper cup forming machine, a latest developed high speed paper cup machine, achieves a stable cup
making speed of 120-150pcs/min and in the actual development test, the maximum speed can reach more than 140pcs/min.
We reversed the previous design and redesigned a more optimized mechanical transmission and forming system. Whole
machine main transmission parts and helical gear transmission are more efficient and compact than those on C800.
Cup wall and the bottom of the cup are sealed with LEISTER bottom heaters and Even GREEN ultrasonic side welder imported
from Switzerland and Taiwan. The whole cup making process is controlld and monitored by Delta inverter, Delta servo feeding,
Delta PLC, Delta human-compoter interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc. Thereby
improving the performance of the equipment and achieving fast and stable running. High degree of automatic and automatic
shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.
Machine Details
Technical Specification

Model	MG-G800
Cups Specifications	4-16oz
Paper Specfications	150-350GSM single/double PE coated paper
Production Capacity	120-150pcs/min
Voltage	220V/380V 50HZ
Total Power	15KW
Total Weight	3000KG
Dimensions	Machine: 2800*1500*1700mm Collection table: 1300*1000*1700mm
Shipping Details	By sea/air transportation according to customer need
Paper Cup Usage	Tea cups, coffee cups, ice cream cups
Optional Equipmen	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.

Samples
Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service
