Youjia Brand LDPE Three Layers PE Air Bubble Film Making Machine

Product Description

Product Description

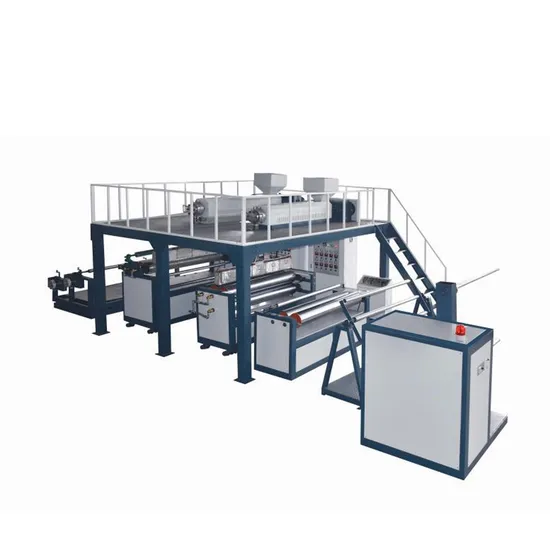

Double Screw Three Layers Air Bubble Film Machine
The Double Screw Three Layers Air Bubble Film Machine is crafted with optimal efficiency and product quality in mind. Its once-through shaping technique guarantees exceptional results and high productivity. The machine boasts a sleek and reliable design, making it easy to operate and maintain.
It produces polyethylene air-cushion film, alternatively referred to as polyethylene bubble film and is an excellent choice for convenience. This packing material comes in two types: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film. It offers excellent cushioning, shock resistance, and heat-sealing performance, as well as corrosion resistance and transparency, making it ideal for packing household items, post parcels, bicycles, and polyurethane furniture.
The primary structure comprises extruders, a control panel, a bubble forming section, and a winder. Our plastic extruder machine is capable of producing three-layer air bubble film, comprising of a bubble layer and a base layer. Both layers can be controlled independently, providing flexibility in terms of different material formulations, colors, and thicknesses. We have a range of models available to meet your specific needs, with film width options ranging from 1,000mm to 3,000mm.
Characteristic:
Our extruders are built with the highest quality materials to ensure maximum efficiency.The screw and cylinder are made of 38 CrMoALA and undergo nitrogen treatment for improved corrosion resistance and endurance. This guarantees our machine's long-term durability and superior performance. The screw has a high L/D ratio of 30:1, with a unique mixing function and excellent plasticizing ability, resulting in ideal plasticization, effective mixing, and high output
We have installed a state-of-the-art cooling mechanism that utilizes cycle water cooling to ensure optimal bubble formation even at high velocities. This ground-breaking attribute ensures the most transparent effect for the bubble film produced by our machine. You can count on impeccable outcomes every time, all thanks to this advanced cooling system.
Additionally, our device features a user-friendly dual-station auto changer for the winding, leading to seamless operation and heightened efficiency. In addition, we provide an auto cutter option, offering increased convenience and versatility for your packaging requirements.
Our plastic extruder machine is a top-quality and dependable solution that you can trust.
Its exceptional attributes and advanced features make it the ideal choice for all of your packaging needs.
Product Parameters

Model	XYPE-D1500	XYPE-D1800	XYPE-D2000	XYPE-D3000
Screw	Φ75/60	Φ90/75	Φ95/70	Φ115/100
Screw L/D	30:1	30:1	30:1	30:1
Main motor	22kw	37kw	45kw	55kw
Film width	1500mm	1800mm	2000mm	3000mm
Max output	80kg/h	110kg/h	130kg/h	170kg/h
Weight	6000kg	7000kg	8000kg	9800kg
Dimensions (L*W*H)	12.0×4.0×2.6m	13×4.5×3m	14×5.0×4.0m	17×6.5×5.0m

Detailed Photos

Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?
We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves. 2. Where is your factory? How can i visit your company? Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station. Welcome to visit our factory 3. How long is your delivery time? Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days 4. What are your terms of payment? We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product? Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service? Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory. 7. What's your warranty policy? 12 month guarantee and whole life maintance. 8. What is your company after sale service? We would express the free replacement parts as soon as possible.

---
