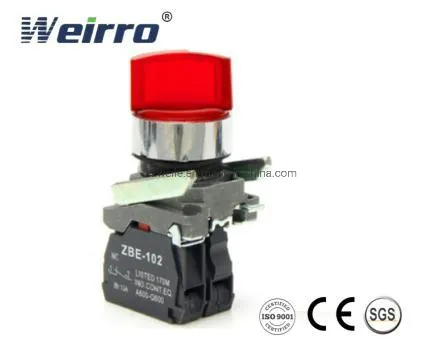

Push Button Switch Lay5-Bk2465 Button, Xb4utton, 22mm Metal Selector Button 2 Position with LED Lamp,Metal Selector Button Xb4utton,22mm 2 Position Push Button

US$0.50-0.90 400 Pieces (MOQ)

Basic Info.

Model NO.
LAY5-BK2465
Wiring
Null Line and Live Line
Principle
Normal
Application
Home Appliance, Electronics, Industrial, Apartment/Villa, Commercial
Type
Normal Close
Number of Switch
Single Control Switch
Structure
Power Built-in Type
Usage
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind
Single-pole on-off Switch
Contact Type
Type a Contact
Detection Method
Retro-reflective Mode
Brand
Weirro
Certification
ISO9001, CE, SGS/CE
Selector
2p/3p
Conventional Thermal Current
Ith 10A
Temperature
-25~+55
Protection Degree
IP40/65
Working Life
3000000 Times
Rate Value AC
AC-15,36-380V
Rate Value DC
DC-13,24-250V
Light
LED/Ba9s
Transport Package
20PCS/Inner Box, 200PCS/CTN
Specification
22mm
Trademark
weirro
Origin
China
HS Code
853650000
Production Capacity
50000PCS Per Month

Product Description

Introducing the Push Button Switch Lay5-Bk2465 Button, a remarkable addition to our collection of high-quality electrical components. Crafted with precision, this 22mm Metal Selector Button with LED Lamp is designed to provide seamless functionality and durability. With its sleek and professional appearance, it is perfect for various applications. The 2-position feature allows for easy operation, while the LED lamp adds a touch of sophistication. Whether you need a start button or a push button, this product is the ideal choice. Trust in its reliability and efficiency to enhance your electrical systems. Upgrade your equipment with the Metal Selector Button Xb4utton,22mm 2 Position Push Button.
Product Desciption:
Test Standard: EN60947-5-1:2017
Ambient temperature: -25ºC~+55ºC
Pollution Grade: Class 3
Protection Grade: IP40/IP60
Ui(V): AC660V
Ith(A): 10A
Voltage of Working: 2.5KV(AC valid value )1M
Insulated resistance: ≤50MΩ
Rated Capacity AC-15: 220V/6A,380V/4A,660V/2A
Rated Capacity DC-13: 24V/6A,48V/3A,110V/1A,220V/0.5A,440/0.25A
Working Life: ≥1000X1000
Class installation: II
Short-circuit Protection: RT16-10A
Cable gland: PG13.5
Vibration Resistance: ≥10g
