Uhb Slurry Sand Sewage Pump Chemical Pump Corrosion Acid and Alkali Wear Resistant

Product Description

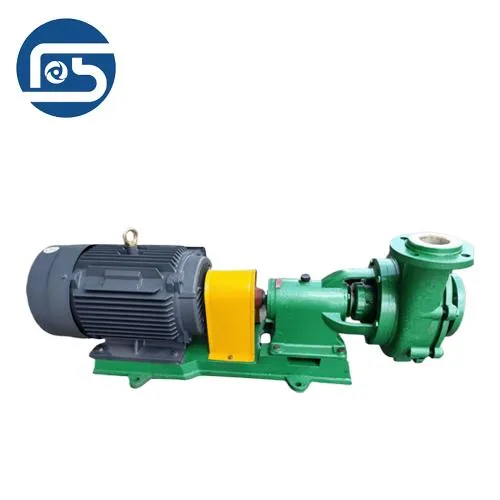

UHB-ZK corrosion-resistant and wear-resistant mortar pump series products are designed for transporting corrosive and containing particles or crystalline media. It's good at corrosion resistance and wear resistance. The impeller is semi-open (no front cover), which enhances the permeability of the flow channel. So that particles and impurities in the medium can pass through the pump chamber quickly without blocking. This series of products are popular in metal smelting, titanium dioxide, chemical industry, chemical fertilizer by users. This product also can be customized according to special requirements.Material structure diagram
Performance parameter

TYPE	FLOW RATE m³/h	HEAD m	ROTATIONAL SPEED r/min	MOTOR POWER		APERTURE mm	WEIGHT kg
				SHAFT POWER	ELECTRIC MACHINE kw
32UHB-ZK-3-13	3	13	2900	0.3	1.5	32×25	70~80
32UHB-ZK-5-20	5	20	2900	0.72	2.2
32UHB-ZK-6-18	8	18	2900	1.2	2.2
32UHB-ZK-5-25	5	25	2900	1.1	2.2
40UHB-ZK-10-18	10	18	2900	1.3	2.2
40UHB-ZK-15-15	15	15	2900	1.7	2.2	40×32	110~130
40UHB-ZK-10-30	10	30	2900	2.2	3
40UHB-ZK-15-25	15	25	2900	2.7	3
50UHB-ZK-20-20	20	20	2900	3	4	50×40	150~300
50UHB-ZK-25-18	25	18	2900	3.2	4
50UHB-ZK-20-30	20	30	2900	4.3	5.5
50UHB-ZK-15-60	15	80	2900	15	18.5
65UHB-ZK-30-20	30	20	2900	5	5.5	65×50	200~260
65UHB-ZK-40-15	40	15	2900	4.5	5.5
65UHB-ZK-30-32	30	32	2900	6.5	7.5
65UHB-ZK-10-50	10	50	2900	5.1	7.5
65UHB-ZK-20-50	20	50	2900	8.7	11
65UHB-ZK-30-50	30	50	2900	12	15
65UHB-ZK-25-80	25	80	2900	15.1	18.5
80UHB-ZK-40-20	40	20	2900	5.8	7.5	80×65	270~380
80UHB-ZK-50-15	50	15	2900	5.6	7.5
80UHB-ZK-50-20	50	20	2900	7.1	11
80UHB-ZK-45-35	40	35	2900	10.2	11
80UHB-ZK-50-30	50	30	2900	10.2	11
80UHB-ZK-60-30	60	30	2900	12.6	15
80UHB-ZK-50-50	50	50	2900	14.8	18.5
80UHB-ZK-50-80	50	80	2900	22.8	30
100UHB-ZK-80-15	80	15	2900	10.2	11	100×80	300~500
100UHB-ZK-60-30	60	30	2900	13.8	15
100UHB-ZK-60-40	60	40	2900	16.8	18.5
100UHB-ZK-60-50	60	50	2900	21.5	22
100UHB-ZK-80-30	80	30	2900	17.5	22
100UHB-ZK-100-20	100	20	2900	15	18.5
100UHB-ZK-100-25	100	25	2900	17.9	22
100UHB-ZK-100-30	100	30	2900	19	30
100UHB-ZK-100-40	100	40	2900	27	30
100UHB-ZK-100-80	100	80	2900	39.6	45
125UHB-ZK-140-20	140	20	2900	21	30	125×100	480~600
125UHB-ZK-150-30	150	30	2900	26	30
125UHB-ZK-140-40	140	40	2900	31.6	37
150UHB-ZK-200-30	150	30	1450	41.5	45	150×125	800~1100
150UHB-ZK-250-30	250	30	1450	42.9	45
150UHB-ZK-150-40	150	40	1450	42	45
150UHB-ZK-320-32	320	32	1450	50.1	55
200UHB-ZK-300-25	320	25	1450	37.3	55	200×150	1000~1400
200UHB-ZK-350-20	350	20	1450	37.1	55
200UHB-ZK-400-18	400	18	1450	38.3	55
200UHB-ZK-320-32	320	32	1450	51.8	55
200UHB-ZK-350-28	350	28	1450	45.2	55
200UHB-ZK-400-25	400	25	1450	70	75
200UHB-ZK-450-20	450	20	1450	70	75
200UHB-ZK-250-45	250	45	1450	74	75
250UHB-ZK-500-20	500	20	1450	67	75	250×200	2200~3000
250UHB-ZK-500-26	500	26	1450	78.3	90
250UHB-ZK-500-37	500	37	1450	100.7	110
250UHB-ZK-600-32	600	32	1450	99	110
250UHB-ZK-600-50	600	50	1450	139.8	160
250UHB-ZK-800-32	800	32	1450	130.2	132
250UHB-ZK-800-50	800	50	1450	213.8	200
300UHB-ZK-950-30	950	30	1450	140.3	160	300×250	3000
300UHB-ZK-1000-28	1000	28	1450	148.7	160
350UHB-ZK-1800-25	1800	25	1450	226.3	250	350×300	3500

About us:
Nanjing Fengsheng Machinery Equipment Co.Ltd. is located in Jiangsu province. Our main products contains several kinds of pump. Several kinds of pump.Such as fluoroplastic alloy pump, chemical pump, self-priming pump,magnetic pump, diaphragm pump and stainless steel pump.
At the same time, we undertake the manufacture of similar standard and non-standard products.We have advanced production equipment and technical team to provide quality products for domestic and foreign customers. We are committed to providing first-class service to our customers.
We have a completed production line and a professional production team to ensure production capacity. We can ship on time according to customer requirements.
These are our unpainted semi-finished products.
The continuous research of new applications and the constant product innovation allow us to offer customized solutions and global after-sales service.
We provide instructions for each product and provide you with free guidance and assistance. All products will be carefully packed to ensure that it will not be damaged in transit.
FAQ:
Q: What after sales service do you provide?
A: We offer free guidence online and paid service is available too.
Q: Do you have factory?
A: Yes, we also have a professional team.
Q: What is your product warranty?
A: 12 months after shipment.
Q: How long can it be delivered?
A: 7-30 days.

---
