Square Column Desktop Type Milling and Drilling Machine Vertical Drilling Tapping and Boring Machine Zay7045fg/1

Product Description

1. FEATURES
This machine may be used for surface cutting,drilling,milling,and tapping. This machine is of fine quality,can be operated easily, it is not limited to skilled operator. The drilling and milling operation can be performed by two methods: Hand operation,which makes quick feed drilling. Worm gear feed operation,which makes slow feed milling. Many of the adjustable nuts are bronze,for adjusting thread clearance and reducing wear.these bronze parts also allow screws to rotate smoothly and improve accuracy. The vertical column is very strong and stiff,which makes the machine very stable and improves accuracy of manufactured parts. The machine head is cast iron, it has been heat-treated,stress-relieved, And precision machined. Machine gears are precision ground for smooth operation. Speeds can be easily changed. Tapping can be done in either rotation,working depth can be controlled by using a positive stop gauge.

micro-feeding knob 2. Auto-feeding knob 3.feeding handle 4.crank 5.handwheel 6.cross lock screw 7. Longitudinal lock screw 8.lock handle 9.shift handle 10.switch 11.Guard
Specification

Model	ZAY7032FG/1	ZAY7040FG/1		ZAY7045FG/1
Max.drilling capacity	E32mm	E40mm		E45mm
Max.face mill capacity	E63mm	E80mm
Max.end mill capacity	E28mm	E32mm
Max.tapping capacity	M12
Max.spindle stroke	130mm
Headstock axial stroke	400mm
Swivel angle of headstock at perpendicular direction	±90°
Max.distance between spindle nose to table	450mm
Spindle taper	M.T.3 OR R8	M.T.4 OR R8
Distance between spindle to slide	286mm
Working area of table	800mm×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Spindle speeds (4P)	50HZ 80,145,260,375,710,1250 RPM
	60HZ 95,175,310,450,850,1500 RPM
Feed steps	6
Feed range(mm/r)	0.06, 0.09, 0.12, 0.15, 0.18, 0.30
Motor	0.75KW (1HP)		1.5KW (2HP)		1.5KW (2HP)
Length	820mm
Width	1160mm
Overall height (without stand)	1060mm
Net weight/gross weight	320kg/370kg		323kg/373kg		325kg/375kg

Standrad accessories:Allen wrench, Wedge-Wrenches, Drill chuck arbor, screw, draw bar and washers
Optional accessories:
1.Machine stand
2.Power feed
3.90mm paraller vise
4.120mm paraller vise
5.Drill chuck
6.milling cuttter holder
7.Changing sleeve
8.Mill chuck
9.Auto-tapping electrical
10.Boring bar
11.Working lamp
12.Coolant system
13.DRO/XY

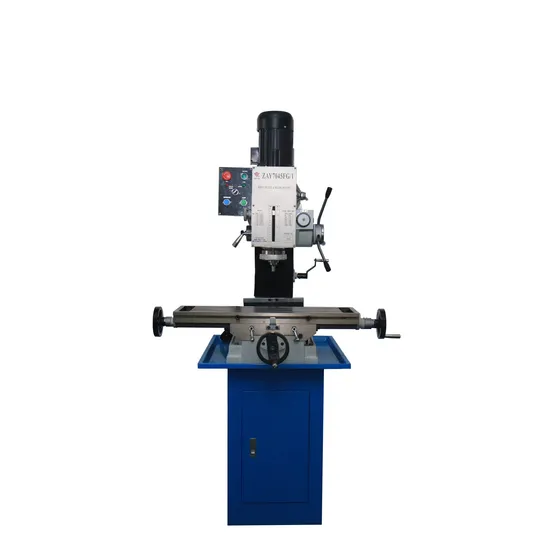

3.Machine photos
4.Manufacturing Capability

---
