Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Number of Shaft
Conventional
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Name
Metal Z5025B high precision vertical drilling
Distance between spindle nose and stand
550mm
Distance from spindle axis to column
225mm
Transport Package
Plywood Case with Steel Base
Specification
780*520*1170MM
Packaging & Delivery
Package Size
800.00cm * 540.00cm * 1190.00cm
Package Gross Weight
255.000kg
Product Description

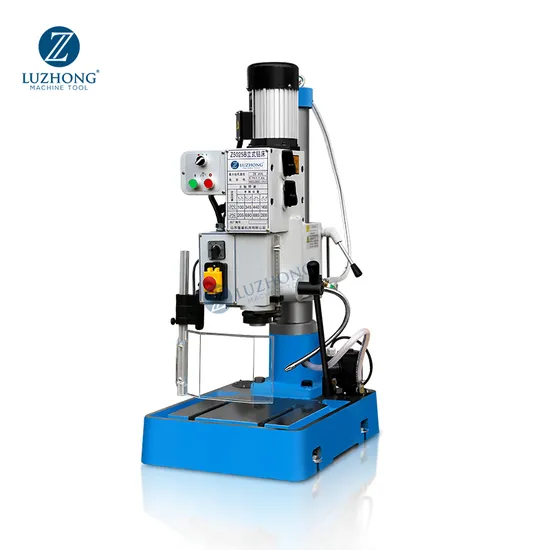

Metal Z5025B high precision vertical drilling machine with CE
Product Description
Product Parameters
| SPECIFICATIONS | Units | Z5025B |
| Max. drilling dia. | mm | 25 |
| Diameter of column | mm | 100 |
| Spindle travel | mm | 150 |
| Distance between spindle nose and table surface | mm | - |
| Distance between spindle nose and stand table | mm | 550 |
| Distance from spindle axis to column surface | mm | 225 |
| Spindle taper | - | MT3 |
| Spindle speed range | rpm | 100-2900 |
| Spindle speeds steps | - | 8 |
| Spindle feed range | mm/r | 0.07-0.40 |
| Spindle feed steps | - | 4 |
| Table size | mm | - |
| Table travel | mm | - |
| Stand table size | mm | 690*500 |
| Main motor power | kw | 0.75/1.1 |
| Coolant motor power | w | 40 |
| Machine weight | kg | 235 |
| Overall dimension | mm | 780*520*1170 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
