Disc Round Hay Chaff Cutter Crusher Chopper for Farms Square Round

Product Description

Product Description

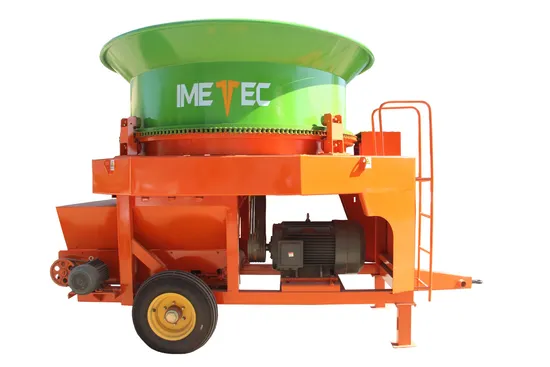

Straw Hay Crusher is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, It is an essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability,and convenient disassembly and transportation.
Baler Shredder features
1. The turntable can store a large amount of materials, realize intermittent feeding and continuous work.
2. The inner disc of the rotating disc is designed with a damping plate, which can grasp the bale and rotate it, and the cutting efficiency is high.
3. There are many movable knives, high shredding degree, and the blades are welded with tungsten alloy, which can be used for a long time.
4. The power driving mode can be electric motor driven or tractor PTO driven.
Product Parameters

Hay Crusher Parameter
Model	9FC-130
Main Motor	90KW 4 phase
Cut Length	3-5cm
Efficiency	4-6t/hour
Upper Box Dia	2800mm
Bottom Dia	2200mm
Hammer Number	48pieces
Application	Dry Hay such as alfafa,rice stalks etc
Loading Way	Wheel loader
Discharging Outlet	Upper or Down can be chosen
Guarantee Time	24 months
