Fast Delivery Manual 3.5ton Electric Forklift Truck (CPD35)

Product Description

Product Description

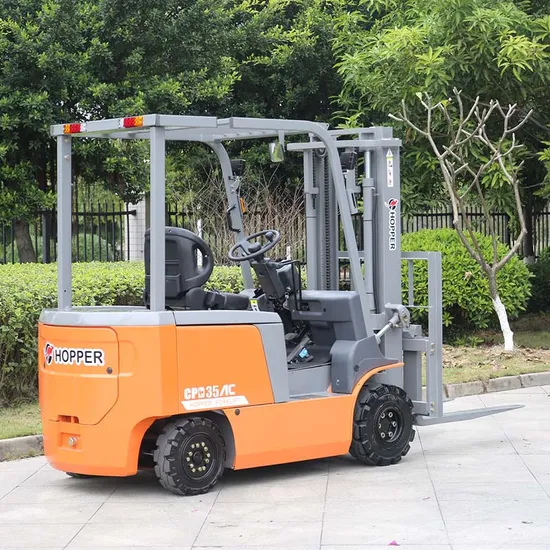

Fast Delivery Manual 3.5ton Electric Forklift Truck (CPD35)

CE approved 3.5ton Electric Forklift Truck (CPD35) features:
1. AC system precise control, CAN bus technology multiple protection, safe and reliable. 2. Powerful, driving, leading lifting and climbing performance. 3. Overhead guard and body welding monolithic structure, the overall strength more higher. 4. HMI design of the control handle, easy for left and right hand operation, improve the driving comfort. 5. Small turning radius, good passing performance. 6. 1. Mast drop cushioning and comfortable vehicle operation. 7. Intelligent deceleration turning design, improve the stability of the vehicle during traveling, to avoid tipping cargo.1. (Optional) CE approved 3.5ton Electric Forklift Truck (CPD35) specifications:

CPD35 Technical Parameters
Model			CPD35
Load capacity/rated load		kg	3500
Load center distance	Q	mm	500
Maximum lifting height	H3	mm	3000
Mast tilt angle,front/rear	α/β		6°/12°
Max .Travel speed unladen		km/h	14
Max .Travel speed laden		km/h	13
Max . Lift speed unladen		mm/s	340
Max . Lift speed laden		mm/s	220
Max . gradability, unladen		%	15
Max . gradability, laden		%	15
Weight (without battery)		kg	3895
Overall length ( No fork)	L	mm	2606
Overall length (Including fork)	L1	mm	3735
Overall width	B	mm	1220
Overall height of overhead guard	H4	mm	2250
Mast height, lowered	H1	mm	2085
Mast height, lifted	H2	mm	4225
Wheelbase	Y	mm	1690
Load distance center of drive axle to fork	L2		500
Fork length		mm	1070
Fork width		mm	125
Fork height, lowered	H5	mm	50
Fork outer size, min./max.		mm	1110-250
Min.ground clearance	H6	mm	110
Min. turning radius	Wa	mm	2355
Aisle width for lengthways	800*1200	mm	4445
	1000*1200	mm	4560
Front tire		mm	28*9-15 14PR,Inflatable tire
Rear tire		mm	18*7-8, Solid tire
Drive motor(AC)		kw	11
Lift motor(DC)		kw	14
Battery Voltage		V	72
Battery capacity		AH	550
Battery Weight		kg	1237
Container quantity(20GP/40HQ)		unit	2/4

CE approved 3.5ton Electric Forklift Truck (CPD35)
Hopper is the subsidiary brand for Material Handling Equipment of Marshell Electric Vehicle Company, which has four factories in Zhaoqing, Shanghai, and two in Anhui.
Hopper forklift trucks are sold all over the world. Serial types of materials handling machines include hand pallet trucks, electric pallet trucks, electric pallet stackers, electric reach stackers, electric tractor, and electric counterbalanced forklift trucks. They are widely used in production factories, warehouses, stations, airports, supermarkets, and other fields.
Each vehicle is 100% tested. IQC, Q, and QA procedures are employed to test materials, check products on the assembly lines, and evaluate goods before shipping. To control the low cost, we also make many components in our factory, such as batteries, charger, gearbox, chassis, mast, fork, painting, tooling, etc.
