Q300 1D 2D QR Code Wiegand Scanner Barcode Access control RFID Smart Card & NFC Reader

Product Description

Product Description

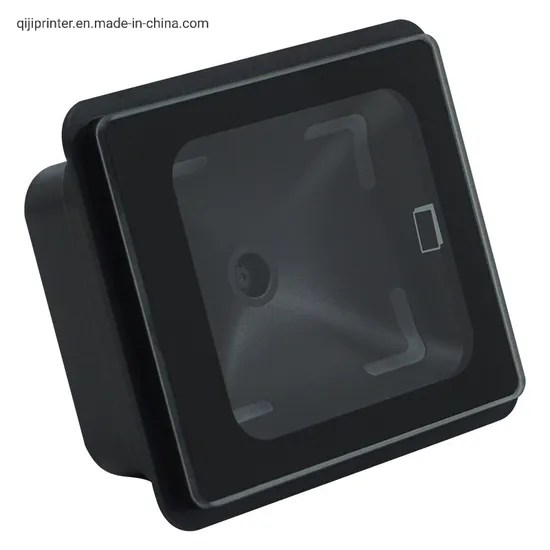

Q300 1D 2D QR Code Wiegand Scanner Barcode Access control RFID Smart Card & NFC Reader For Turnstiles Veding Machine The Q300 QR code reader was a specially designed embedded type device, which has various output interface, including USB, RS232, RS485, TTL, Wiegand, suitable for vending machines, turnstiles.
Features:
1. Scan code& swipe card all in one.
2. Fast recognition speed, high accuracy, 0.1 second the fastest.
3. Easy to operate, humanized configuration tool, more convenient to config the reader. Detailed Photos
Product Parameters
Q300 1D 2D QR Code Wiegand Scanner Barcode Access control RFID Smart Card & NFC Reader For Turnstiles Veding Machine

Specification Parameters of Q300 series
Working voltage	DC 5V-24V
Working current	280mA
Reading direction	360 degree
Reading distance	0mm~62.4mm(QRCODE 15mil)
Scan speed	100ms per time
Scanning feedback	lights off once scanning
Decoding mode	Image based decoding engine
Imagine sensor	640*480CMOS
FOV	Diagonal: 72° Horizontal: 56° Perpendicular:84°
Applied environment	temp range -20-70ºC; humidity 5%-95%
Output mode	RS232,TTL,USB,wiegand,RS485(Analog keyboard,HID development model)
Symbologies	Two-dimensional: QR Code, PDF417, etc. One-dimensional: EAN-8, EAN-13, ISBN-10, ISBN-13, UPC-E, UPC-ACODE39, CODE93, CODE128, Interleaved2 or 5, etc.
Development interface	USB-HID mode development,Serial communication development,(supply C/C++,C#,Java,DELPHI package)
Compatible system:	Windows series(XP,7,8,9),Android,Linux,Mac,etc.
Size	75*65*28.35mm
Weight	30g
Material	PC+ABS
Recognition window size	56mm*51mm(No glass)
Recognition accuracy	≥8mil
Scanning feature	automatic
Power consumption	0.75W
Light source	LED (white light)
RFID	NFC mobile phone,Mifare_Ultra Light, Mifare_Ultra Light 01,Mifare_One(S50),Mifare_One(S50) 02, Mifare_One(S70),Mifare_Pro(X),Mifare_Pro(X) 04, Mifare_Desire ,Mifare_Desire 05

Packaging & Shipping
Port:Shanghai
Lead Time:

Quantity(Sets)	1 - 10	11 - 100	>100
Est. Time(days)	5	15	To be negotiated

Company Profile
Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
FAQ

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about Payment terms?

For sample, Paypal, Western Union. For bulk order, T/T prepaid.

4.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

5.How about the warranty?

All items have 1 year guarantee.

6.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

7.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.

---
