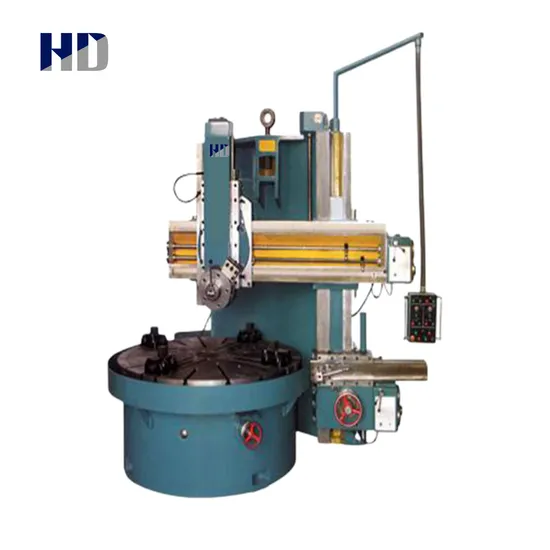

Single Column Vertical Lathe C5112/C5116/C5120/C5123/C5125/C5126

Product Description

Specification Parameter

Specification		Unit	C5112	C5116	C5120	C5123	C5126
Max.cutting diameter of vertical tool post		mm	1250	1600	2000	2300	2600
Max.cutting diameter of side tool post		mm	1100	1400	1800	2000	2400
Max.cutting height		mm	1000	1000/1200/1400	1250	1350	1600
Workingtable	diameter	mm	1000	1400	1800	2000	2250
	max. loading	t	3.2	5	8	8	10
	speed range	rpm	6.3-200	5-160	3.2-100	3.2-100	2-63
	step range	step	16	16	16	16	16
	max. torque	kn. m	17.5	25	25	25	35
Vertical tool pot	feeding rang	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
	feed steps	step	12	12	12	12	12
	cutting force	kn	20	25	25	25	25
	vertical travel	mm	650	800/1000	800/1000	800/1000	1000
	horizontal travel	mm	700	915	1200	1300	1500
	swing angle	°	±30	±30	±30	±30	±30
Side tool post	feed range	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
	cutting force	kn	20	20	20	20	20
	vertical travel	mm	900	900	900	900	900
	horizontal travel	mm	630	630	630	630	630
Vertical (side) turret rapid travel speed		m/min	1.8	1.8	1.55	1.55	1.55
Cross beam travel		mm	650	650/850/1050	850	1050	1250
Beam lifting speed		mm/min	350	350	350	350	320
Tool bar section size		mm	30*40	30*40	40*40	40*40	40*40
Feed motor power		kw	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8
Main motor		kw	22	30	30	30	37
Machine weight		t	8.5	12.4/14/14.8	17	18	26/28
Overall dimension(L*W*H)		mm	2360*2280*2800	2830*2670*3010	3200*2800*3250	3210*2850*3300	3300*4000*3500

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
