Cutting Machine New Fast Indmt Xk9350FAG Lathes for Milling

Product Description

Product Description

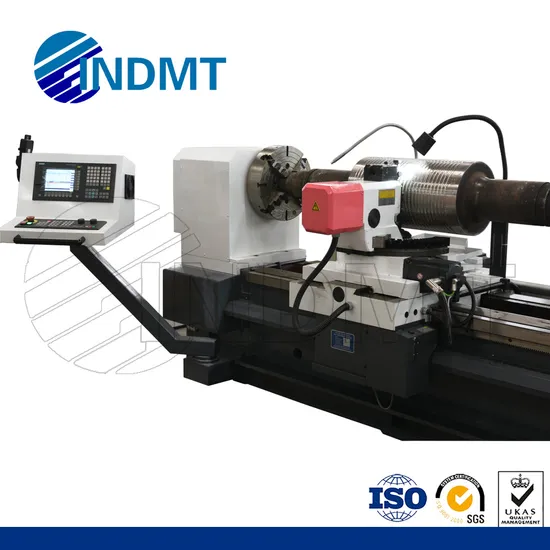

XK9350 CNC Roller Notching And Logo Making Machine installed with Seimens CNC controller and Seimens server motor), suitable for tungsten carbide roll or high speed steel roll or high- nickel- chromium composited roll, or cast iron roll. It can notch ribs mark the symbol on the roll.

Capacity

Work piece material type	Stand roll
Diameter of workpiece	100-500mm
Max Length of workpiece	2500mm
Rib trough specification	6-50mm
Work swivel speeds	0-32rpm (AC serve drive)
Cutting type	Fly-cutter
Cutter spindel speed power	0-600 rpm/2.0 Kw (AC Serve drive)
Minmum feed unit	0.001mm(AC Serve drive)
Headstock spindel bore	MT5#
Headstock chuck	400mm
Net weight	5500kg
Overall diamensions	4000*1580*1900mm
CNC System	Washing 2000m CNC system

Our Function
1. Notching (base function)
CNC machine can notch ribs for the deformed steel bar with all standard. The CNC machine use 4 server motors
X axis :notch tool feed forward or turn back.
Y axis: the roll turning with worn gear
Z axis : notching tool turning on the level surface with gear drive.
A axis: the notch tool move from the left to the right.
2.Marking ( basical function)
CNC machine can mark logo, character, drawings etc. on the surface of the roll.
Marking cutter feed forward or turn back, and move from the left to the right
x axis :notch tool feed forward or turn back.
Y axis: the roll turning with worn gear
A axis: the notch tool move from the left to the right
S axis: the marking cutter spindle turning with high speed, VFD
Logo Marking


Packaging & Shipping


After Sales Service

INDMT's products implement worldwide joint warranty services. Regardless of where you buy and use our product, you can contact our company by calling the maintenance service hotline,we promises to respond quickly and solve the fault fast.
In order to meet the needs of the market and customers and better serve the customers, INDMT is equipped with trained technical service engineers with professional machine tool knowledge in major regions to provide professional after-sales service. And established 24-hour response service call platform, monitoring all service calls throughout the service quality is trustworthy!
INDMT can provide maintenance, procurement and design personnel with advice on basic knowledge of CNC machine tools, selection, installation and disassembly, maintenance of CNC machine tools and equipment management. The above services help customers to reduce installation errors, improve work and safety habits, and increase the efficiency of maintenance personnel. The machine tool achieves the best results and the longest life.
About us
INDMT is found as high precision machine manufacturer. We design, produce train and commissioning.
We produce CNC grinding machine for tungsten carbide ring. EDM diamond grinding wheel shaped machine. CNC guide ring turning and grinding machine.
We makes CNC grinding machine for carbide combination roll or high speed steel roll. Specially for rebar finish groove roller. It can help you save roller, increase the amount of steel in the roll.
We manufacture CNC heavy duty turning for carbide combination roll or high speed steel roll or high nickel molybdenum ductile iron roll supplier. CNC heavy duty roll turning lathe, it can remove ribs in the HSS roller. We produce CNC TC ring turning lathe. It will be more efficient than TC ring grinding machine. We also provide CNC turning and grind multi-functional machine. One machine can achieve rough machining and finishing.
We supplies CNC notching and logo marking machine. The machine have more models for selecting. Heavy duty CNC notching and logo marking machine is design for HSS roller and judge diameter of roller or groove.
have spare parts and CNC notching insert and CNC turning insert etc. PCD notching insert for TC RING, PCBN notching for HSS roller. TC notching insert for HSS or for high nickel molybdenum ductile iron roll. CBN turning insert for HSS roller or for iron steel roller . PCD turning insert for TC roller.
provide technical advice and maintenance and service. We accept the design the production of machine tools according to customer needs.
It is our pleasure to receive your advice or inquire. If you need more information pls visit our website indmtgroup.en.made-in-china.com
FAQ
1.How can I choose the most suitable CNC Roller Notching machines ?
A: Please tell me your roller size , it is better to send us the roller's drawing.we can choose the most suitable CNC roller notching machine model for you.
2.What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.What's the Payment Terms ?
A : T/T ,30% advance payment after order ,70% balance payment before shipment ;
Irrevocable LC payment at sight .
4.What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5.How long is the production time
A:The production time for Non-standard CNC machine is 30-45 days

---
