21700 18650 26650 EV Li-Ion Battery Welding Welder Machine For 500*500 Mm Battery Pack Welder
1. Large welding stroke upto 500(X-axis)*400(Y-axis)mm.
2. One side automatic spot welding machine for 18650/26650/32650/square or related module lithium ion battery packs.
3. Equipped with XYZ axis servo drive machine, ball screw transmission, ensure welding accuracy. MIYACHI series power source available to make welding more durable.
4. Cycling cooling water system is equipped in solder pin to improve welding result and prolong equipment life.
5. Auto failure alarm system, 99 sets of program data can be stored available for use at any time.
6. Brands of main parts are optional for quality and cost.
| Product Name | Power Battery Pack Single Face Large Welding Stroke Lithium Battery Spot Welding Machine |
| Material | stainless steel |
| Color | white |
| Secondary Current | Max 0.5% 4500A |
| Digital Display | Digital Tube |
| Welding pulse number | (MAX) 0-99 |
| Used | NB/Power-Tool/Gardening Tool/High Power/ energy storage station battery / e-bike/ e-motorcycle/e-vehicle battery packs |

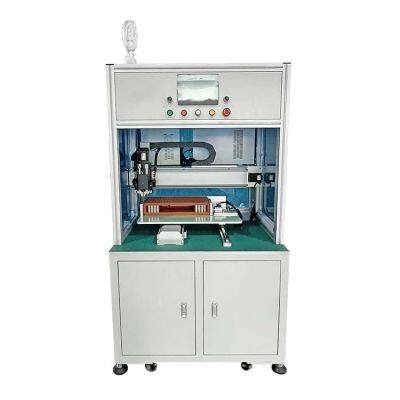

AITOP Battery Spot Welder 18650/21700/32650 Battery Spot Welding Machine Double Sides Automatic Spot Welding Machine
Product Description
Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise
SPECIFICATIONS
AITOP 800 and AITOP-700
|
| AITOP-800
| AITOP-700
|
Welding Head Number
| 1
| 2
|
Travel
| X: 400mm; Y: 400mm
| Y: 600mm; Z: 400mm
|
Welding Spped
| 0.5s/spot, 1600pcs/h
| 0.5s/spot, 3500pcs/h
|
Welder Power Suppler
| 8000A Inverter Spot Welder/6000A Transistor Power Supply
|
Max Motor Speed
| 1000mm/s
|
Max Battery Number
| 400 pcs (18650)
|
Operate System
| Embedded system
|
User Interface
| Touch screen
|
Drive Mode
| Step motor and precision guide rail
|
Power Supply
| 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
Air Pressure
| 0.3-0.6 MPa
|
Machine Size
| 1000L*900W*1750Hmm
| 1300L*1200W*1800Hmm
|
Machine Weight
| 300kg
| 450kg
|
Features:
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 999 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.5s/spot
8. Can be matched with the production line of lithium battery group.
9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
10. Can store dozens process of different battery packs product, switching products without re-setting parameters.
11. Can match a variety brand of spot welders and power supply.
Factory Direct Sale Automatic Spot Welding Machine for Power Battery Pack
1. Large welding stroke upto 500(X-axis)*400(Y-axis)mm.
2. One side automatic spot welding machine for 18650/26650/32650/square or related module lithium ion battery packs.
3. Equipped with XYZ axis servo drive machine, ball screw transmission, ensure welding accuracy. MIYACHI series power source available to make welding more durable.
4. Cycling cooling water system is equipped in solder pin to improve welding result and prolong equipment life.
5. Auto failure alarm system, 99 sets of program data can be stored available for use at any time.
6. Brands of main parts are optional for quality and cost.
| Product Name | Power Battery Pack Single Face Large Welding Stroke Lithium Battery Spot Welding Machine |
| Material | stainless steel |
| Color | white |
| Secondary Current | Max 0.5% 4500A |
| Digital Display | Digital Tube |
| Welding pulse number | (MAX) 0-99 |
| Used | NB/Power-Tool/Gardening Tool/High Power/ energy storage station battery / e-bike/ e-motorcycle/e-vehicle battery packs |
Application Area:
With the corresponding fixture, AITOP-700 can weld 18650, 21700,26650, 32650,32700 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Operation:
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, AITOP-700 automatically complete all welding actions.
4. AITOP-700 sound to prompt operator replacement of new fixture (battery pack).
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
Model
| AITOP-DC-50
|
Transformer Maximum Output Power
| 35KVA
|
Maximum Output Short Circuit Current
| 5000A
|
Welding Conditions
| 8
|
Open Circuit Voltage
| 10V
|
Control Mode
| Constant Current Control
|
Input Frequency
| AC 220V±10% 50Hz
|
Weight
| 55KG
|
Welding Thickness
| Maximum thickness of parallel welding:0.03mm~0.5mm
|
Maximum Thickness of Upper and Lower Butt Welding
| 0.3mm+1mm
|
Size
| 185x280x420mm
|
Our other product catalogues
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 20-35 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
FAQ
Q: What can your machines do?
A: Make the batteries production automatically.
Save the factory owner's invest and better the efficiency.
Q: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q: How can I see samples or know more about the machines?
A: We have real time video on Youtube.
Please contact our sales to get the links.
Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.
Our factory MOQ is 1 set.
Q: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.
All of our products are with CE certifications and are good to export worldwide.
Q: I am a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories.
Our professional engineers and sales shall provide you with budget and costs how much it takes.
Looking forward to establish good business relationship with you
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
>>
