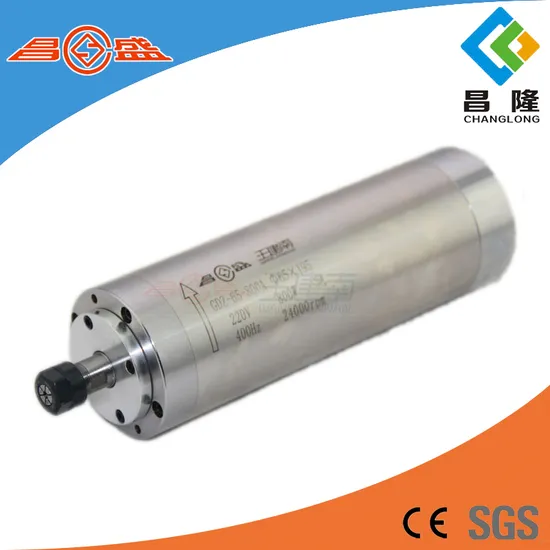

CNC Lathe High Speed Machine Tool Electric Spindle Motor 800W 24000rpm for Wood Engraving

Product Description

Product Parameters

Spindle type	GDZ65-800A
Diameter	65mm
Speed	24000rpm
Power	0.8KW
Voltage	220V
Current	5A
Frequency	400HZ
Joint of nose	ER11
Lub	grease
Cool	water cooling
Bearing type	7002CP4*2+7000CP4*2
Weight	3KG
Torque	0.33Nm
Collet	ER11
Collet nut	3.175mm,4mm,6mm
Warranty period	bearings=half a year other parts a year

Product Description Size picture:
Picture: Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw

We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.

Our Advantages
Company Profile
Changzhou ChangLong Motor Co.,Ltd ( original Changzhou LINNAN Special Motor Factory)
With 20 years' hard working on developing , designing and manufacturing the high-speed electrical spindle, we have got our new GDZ-series electrical spindle, which is well recognized by clients for its great and stable quality after being put large quantities to the market. We provide quality guarantee and after-sales service for all of our products with the free manual work and the cost price for the materials or fittings.

Packaging & Shipping
Certifications FAQ How about the warrantly about your company?
bearings=half a year, other parts a year
Which kinds of bearing you are using?
It will according to your order. We have different price range for you with different bearing.
Do you have other spare parts for spindle motor, just like gripper, VFD, collet ?
We have all kits.And we can let engineers help you to program them.
Can I visit your factory?
Yes, welcome to our factory.
Do you have installation page?
Yes,we have.
Can you show me the inspection report ?
Yes,We will send you inspection report of spindle after you send me full money before despatch.
The reasen is that I'm not sure which spindle will be sent to you.Every spindle have it's inspection report .And they are different in details.Only if you pay the money,we can decide which spindle to deliver you.

We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.

---
